Modal Amplified

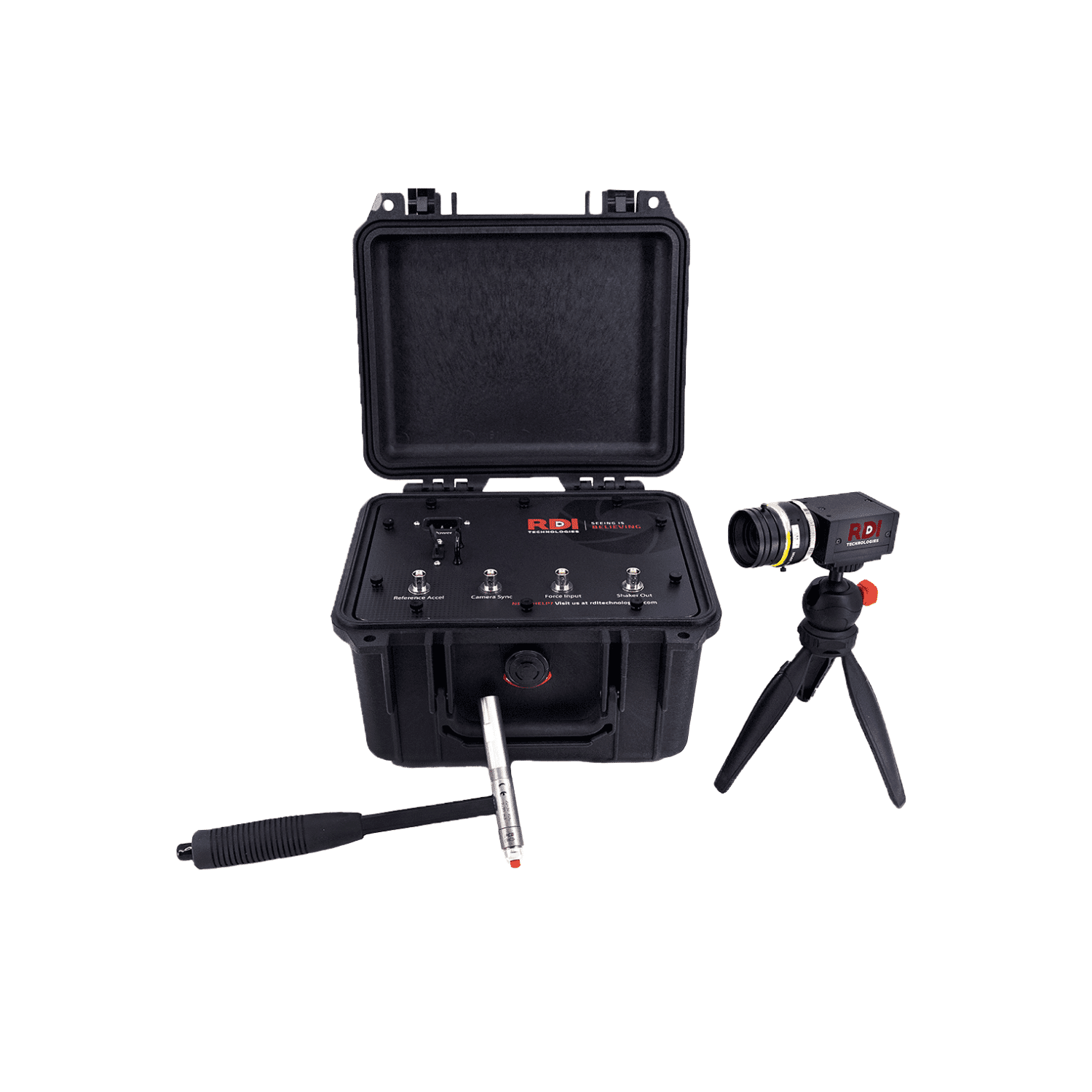

A camera-based Modal Test and Analysis solution, enables a new shift from the time-consuming sensor mapping, placement, fixation, and animated modeling of typical Modal Testing to instant capture, visualization, and analysis on real-life structures.

Turn Hours and Days into Minutes

Modal Amplified™ revolutionizes traditional Modal Testing by replacing the time-consuming process of sensor mapping, placement, fixation, and animated modeling with instant capture, visualization, and analysis of real-life structures.

Unlike conventional methods, Modal Amplified simultaneously measures the force input and the structural responsedirectly through the camera. This enables users to:

Instantly visualize mode shapes
Place an unlimited number of virtual sensors across the structure
Obtain results within minutes instead of hours or days

With the ability to capture dozens—or even hundreds—of measurement points in a single test, Modal Amplified delivers unmatched speed and accuracy.

Traditional testing often requires lengthy setup to approximate how a structure might react. In contrast, Modal Amplified sets up in minutes, is fully portable for multiple views, and instantly visualizes the actual real-world structure. The result: faster data capture, simplified workflows, and reduced testing costs.

PLAYBACK/EXPORT FEATURE

4x original framerate to 1 fps

FREQUENCY RANGE

Up to 5,400 CPM @ 180 fps Maximum: 39,000 CPM at 1,300 fps with reduced resolution

MOTION AMPLIFICATION® FACTOR

1-500x

DATA ACQUISITION SYSTEM

Sound and Vibration Module: AC/DC Coupling, 3 Input Channel, 24 bit, +/- 30V, 12.8 kSPS, BNC IEPE Digital I/O Module: 4 I/O, 50 ns, LV TTL, BNC *Voltage Output Module, C Series, 51.2 kSPS, 24 bit, 2 Output, BNC (Optional add on)

MINIMUM DISPLACEMENT

XY-axis: <0.01 mils (0.25 μm) at 3.3 ft (1m) with 50mm lens, 0.005 mils (0.125 μm) at close focus *Z-axis: 0.6 mils at 3.3 ft (1m) with 50mm lens (Optional add on configuration)

SAMPLE RATE

180 fps in HD, up to 1,300 fps at reduced resolution + 1,400 fps in HD, up to 3,200 fps at reduced resolution

Test on Large or Small Components

Collect data on objects too small or out of reach of physical sensors; captures real-life aftermarket structure, eliminating need to capture non-OEM parts.

Eliminate the Need to Recapture Data

Video capturing eliminates wasting time by recording unnecessary data sets, or too few data points that result in a poor representation of the structure.

Automated Frequency Filtering

Capture 2.5 million data points on the entire structure, then automatically amplify and filter video to the vibration frequencies of interest, reducing the need for time-consuming calculations.

Non-contact
