Iris aiOne

Iris aiOne™ is an all-in-one motion analysis ecosystem that captures, visualizes, and interprets movement with exceptional clarity and speed—delivering fast, actionable insights in one powerful solution.

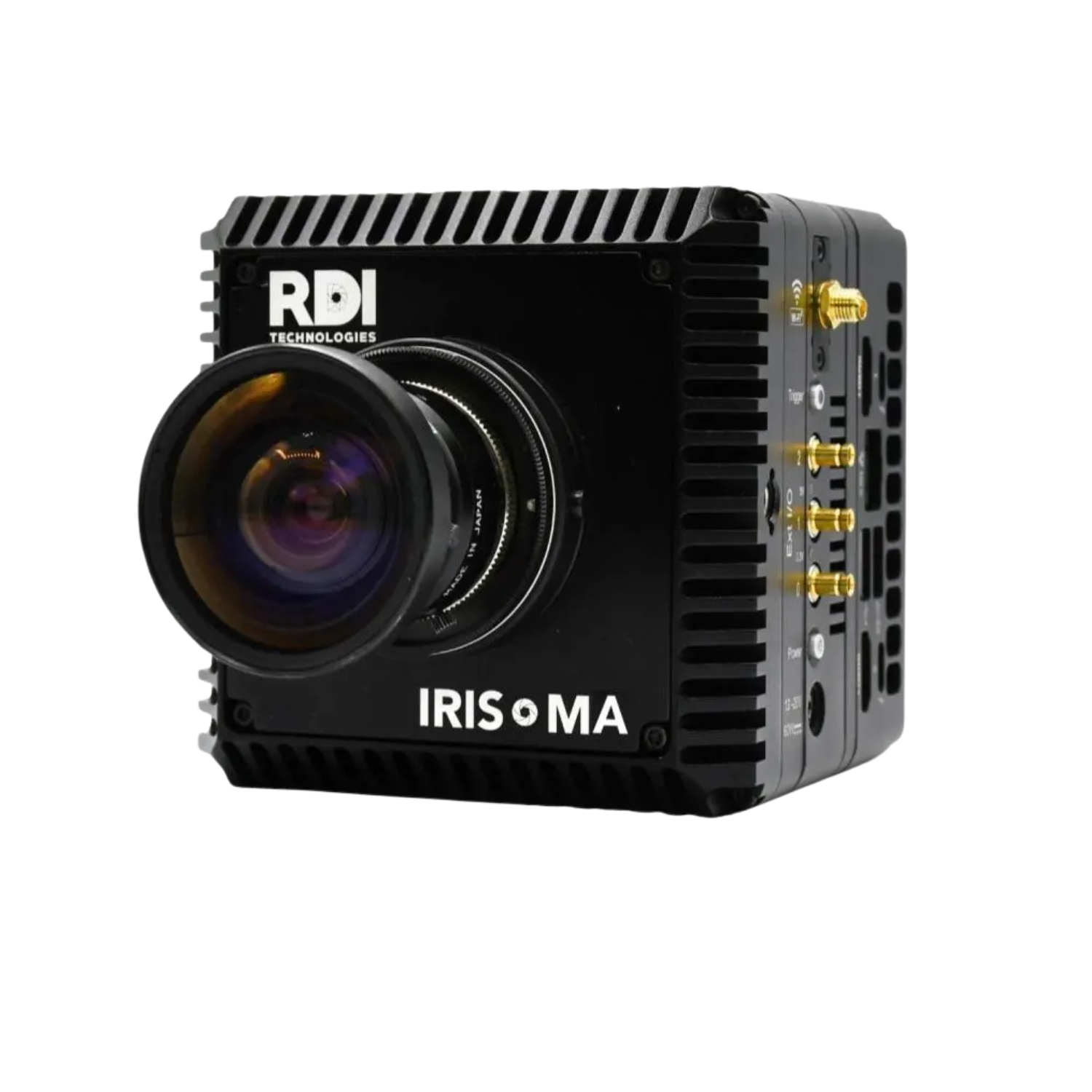

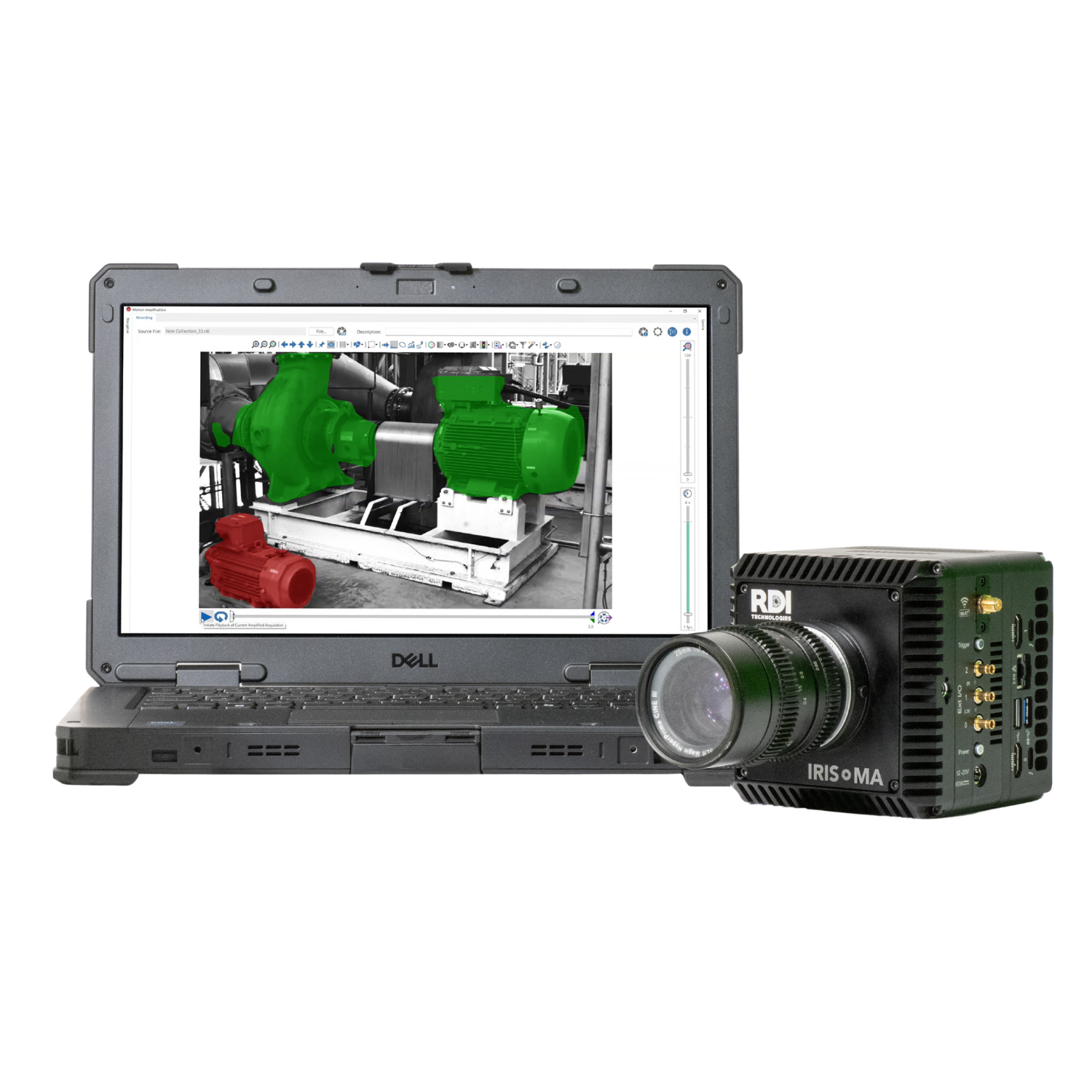

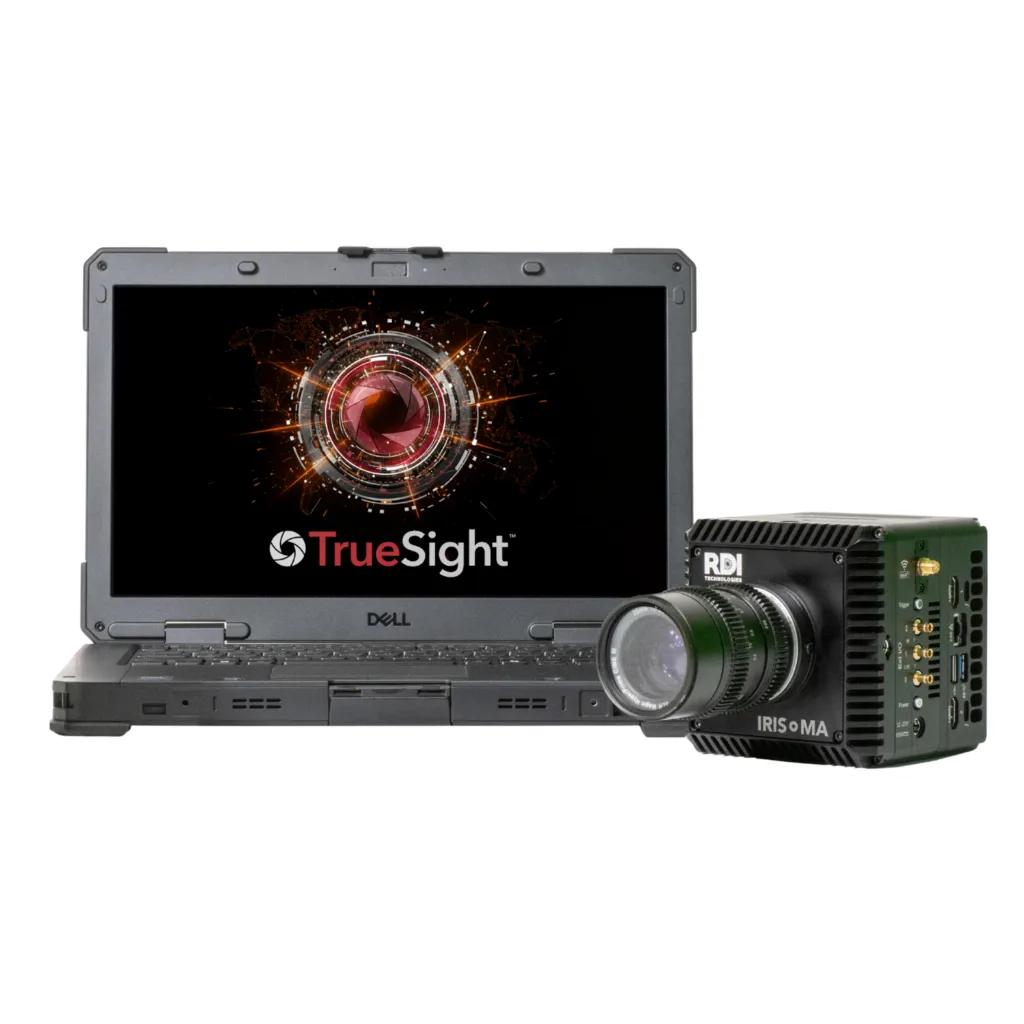

The Iris aiOne™ is a powerful all-in-one ecosystem engineered to deliver a complete and accurate view of your asset’s health. It combines the advanced, rugged Iris MA™ camera with the TrueSight™ analysis engine, which uses computer vision and artificial intelligence purpose-built for rotating machinery, industrial pumps, and critical piping.

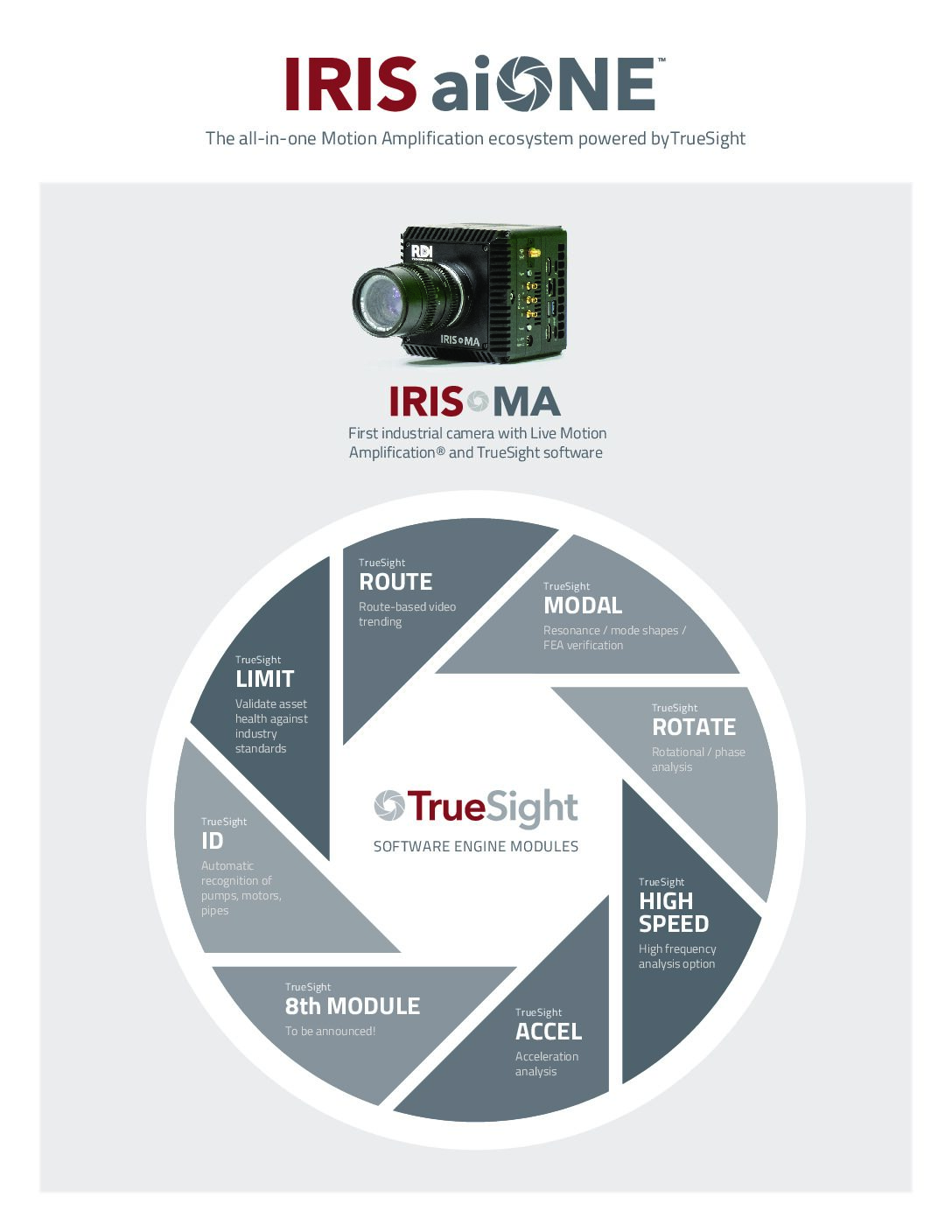

TrueSight™ automatically identifies assets, benchmarks performance against industry standards, and supports integration with traditional accelerometers for hard-to-reach locations or detailed bearing analysis. The result is a unified solution that reveals the full picture of motion—providing clear, fast, and actionable insights that enable your team to diagnose issues, solve complex problems, and make confident decisions almost instantly.

LENSES

50mm f/0.95 Lens for Micro Four Thirds

25mm f/0.95 Lens for Micro Four Thirds

10.5mm f/0.95 Lens for Micro Four Thirds

SAMPLE RATE

1,400 fps in HD, up to 29,000 fps at reduced resolution.

FREQUENCY RANGE

Up to 5,400 CPM @ 180 fps Maximum: 39,000 CPM at

1,300 fps with reduced resolution.

with TrueSight HighSpeed:

Up to 42,000 CPM at 1,400 fps Maximum: 870,000 CPM

at 29,000 fps with reduced resolution.

MOTION AMPLIFICATION® FACTOR

1-500x

MINIMUM DISPLACEMENT

<0.01 mils (0.25 μm) at 3.3 ft (1m) with 50mm lens,

0.005 mils (0.125 μm) at close focus.

PLAYBACK/EXPORT FEATURE

4x original framerate to 1 fps.

THUNDERBOLT CABLE LENGTH

8.84 t (3m)

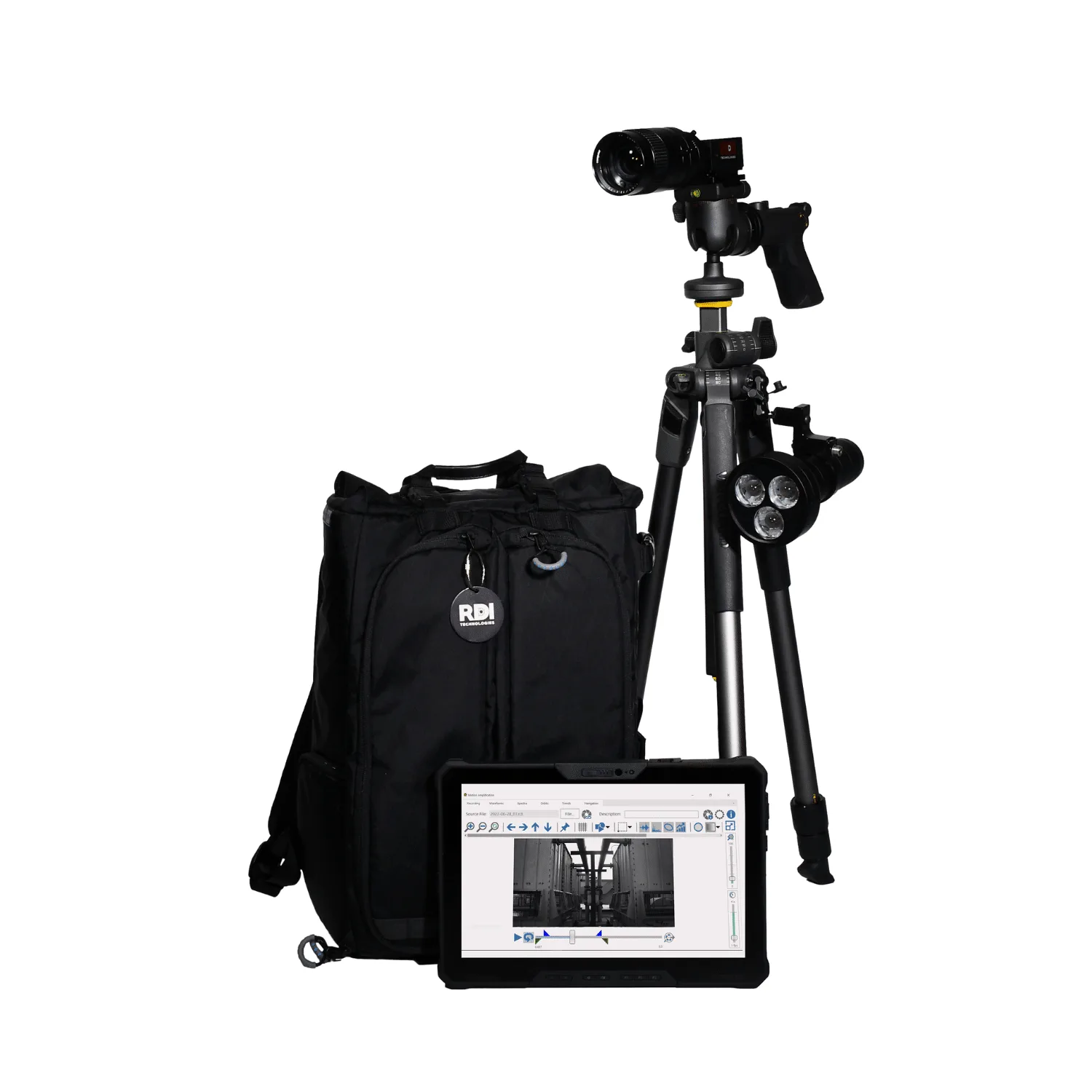

OPTIONAL ACCESSORY KIT

LED light: 23,000 Lux @ 1 m, Li-ion light battery, light

stand, extra vibration pads, computer stand.

ACQUISITION SYSTEM

i7 processor, 32GB RAM,1TB SSD, dual batteries,

lightweight.

10024 INVESTMENT DRIVE #150, KNOXVILLE, TN 37932

TrueSight™ turns insight into confident decision-making. RDI’s patented algorithms treat every pixel in the camera’s field of view as an individual sensor, enabling precise measurement of true motion and accurate calculation of real values for every visible component. This full-field approach removes the blind spots and assumptions common with traditional single-point measurements.
