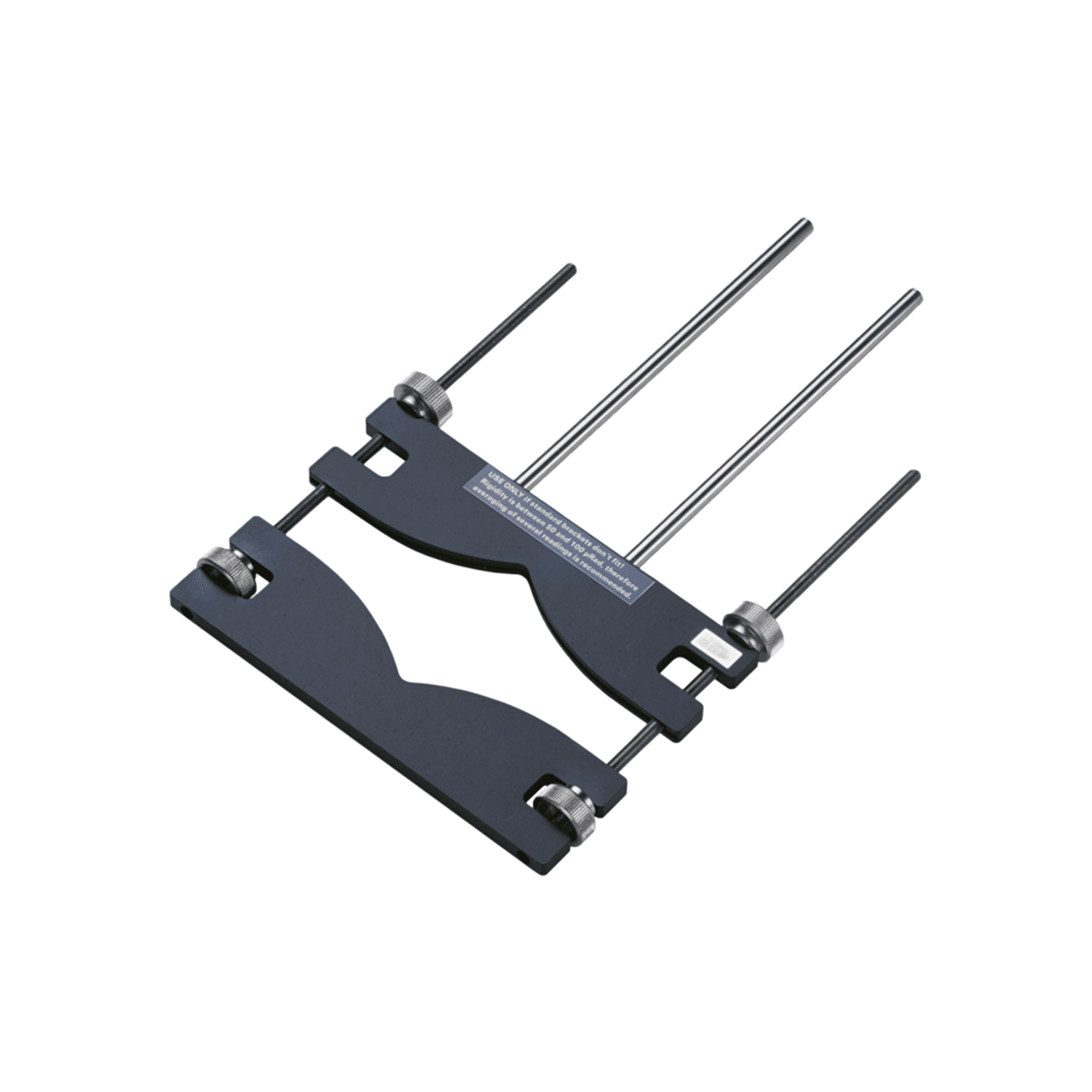

Extra-thin bracket ALI

Extra-thin bracket ALI

The ideal solution to those occasional tight squeezes between coupling and machine housing.

The ALI 2.109 set is suitable for shaft/coupling diameters from approx. 80 mm (3 1/8″) and up. Only 8 mm (5/16″) thick, this bracket offers an ideal solution to those occasional tight squeezes between coupling and machine housing. The case includes one complete set for both sides of the shaft or coupling, including various threaded rods and quick-mounting slip nuts. For shafts of diameter up to 6 5/16″.

Features
