Compact chain-type bracket ALI

Alignment Systems

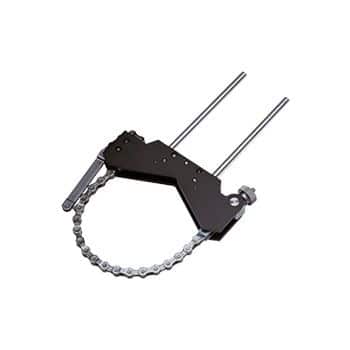

This universal bracket set contains all parts needed for quick, rigid mounting of the measurement components.

It fits onto nearly any shaft or coupling approximately 5 mm to 500 mm or 5/8″ to 20″ in diameter. Easily mounts in less than 1 minute!

Stored pre-mounted in the case for instant usage.
Mounts on machine shaft in less than a minute.
Standard chains fit to shaft and coupling diameters of approx. 15 mm to 200 mm / 5/8″ to 7 7/8″
Readily available replacement parts.

Features

This universal bracket set contains all parts needed for quick, rigid mounting of the measurement components. It fits onto nearly any shaft or coupling approximately 5 mm to 500 mm or 5/8″ to 20″ in diameter. Easily mounts in less than 1 minute!

Stored pre-mounted in the case for instant usage
Mounts on machine shaft in less than a minute
Standard chains fit shaft and coupling diameters of approx. 15 mm to 200 mm / 5/8″ to 7 7/8″
Readily available replacement parts.

ALI 2.891set consists of the following individual parts:

Bracket frame w/hex key (2 pcs) ALI 2.117
300 mm / 11 3/4″ chain (2 pcs) ALI 2.114
600 mm / 23 1/2″ chain (2 pcs) ALI 2.115

Support posts, 4 pcs. each:

115 mm / 4 ½”, white ALI 2.170
150 mm / 5 15/16″, black ALI 2.171
200 mm / 7 7/8″, grey ALI 2.172
250 mm / 9 7/8″, green ALI 2.173
300 mm / 11 13/16″, yellow ALI 2.174
Storage pouch 0 0593 0054
