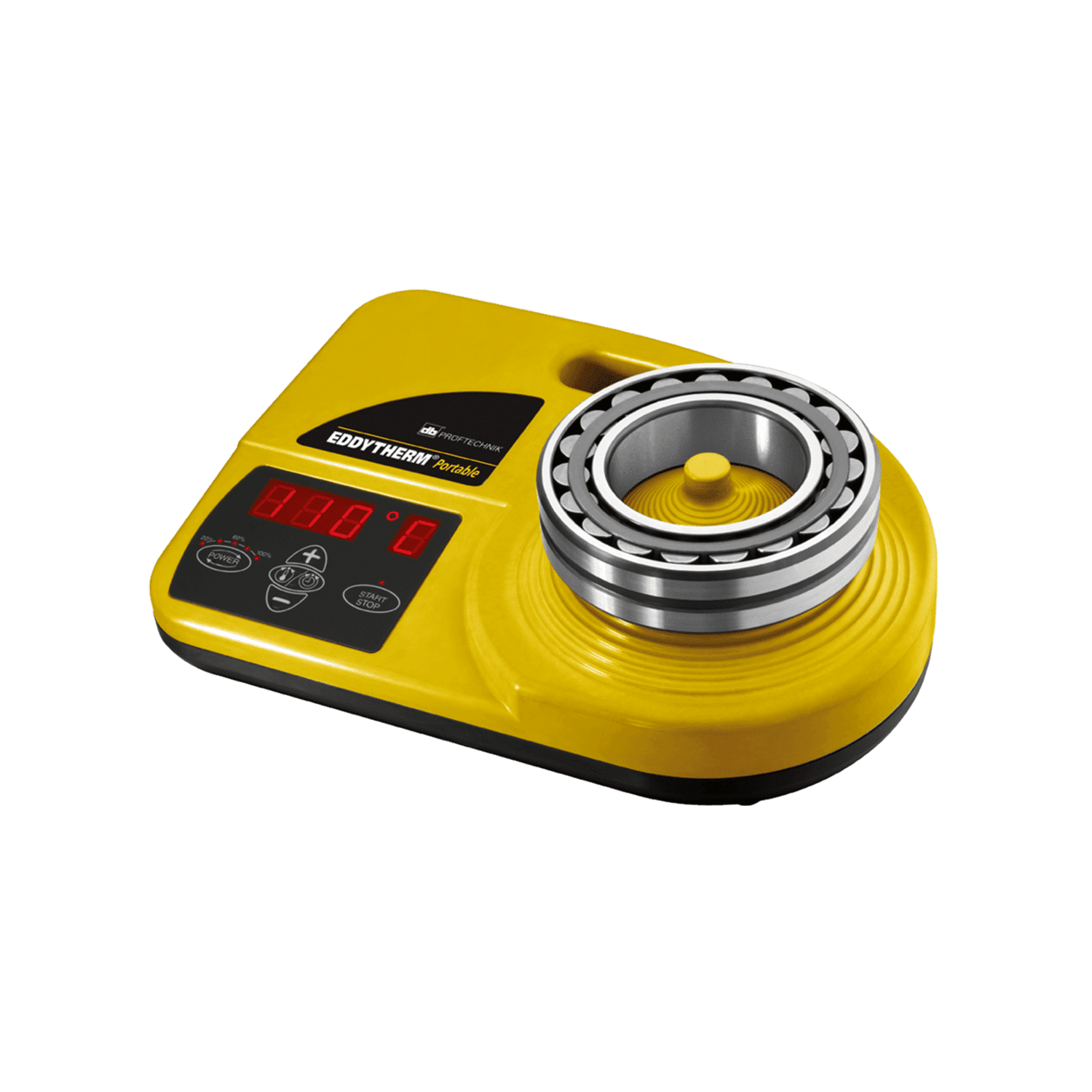

Key features
- Suitable for bearings up to 10 kg.
- Portable and compact induction heater.
- Magnetic temperature probe up to 180°C.
- No support yoke required.
- Predictive temperature control (no overheating).
- Available options: Voltage from 100 – 230 V and frequency 50/60 Hz.
- High frequency technology for outstanding heating performance.
EDDYTHERM® is the logical approach to shrink fitting of bearings, gears, couplings, impellers, crane wheels, rings, sleeves, etc
EDDYTHERM® utilizes the induction principle as in transformers – its core and windings can be seen as the primary side, but the workpiece acts as a short-circuited secondary winding, which rapidly heats up due to its great electrical resistance. This phenomenon allows EDDYTHERM® to control heating by continuously monitoring the workpiece temperature and adjusting its own heating power accordingly. This ensures that the workpiece is heated evenly and the selected temperature is achieved precisely. The crossbar itself remains cool to touch.
Why shrink fitting?
Proper shrink fitting extends the life of roller bearings by several times. Nearly half of all reduced bearing life expectancy is due to improper installation. Mechanical methods such as hammers and hydraulic presses risk damaging the inside surface of the inner ring and the bearing races. The better shrink fitting solution is via induction heating.
Detailed features
- Robust industrial design
- Equipment for workshop use
- Heavy-duty construction
- Suitable to use with work gloves
- Environmentally friendly
- Energy saving
- No smoke or oil vapour
- Safety
- Automatic error detection
- Thermal overload protection
- Saves bearings
- No contamination of factory prelubrication
- Precision ground crossbars reduce vibration, preventing chatter marks on bearings
- Demagnetization
- All EDDYTHERM® heaters demagnetize workpieces automatically at the end of every heating cycle with no residual magnetism to collect debris.
- Magnetic temperature probe up to 180°C
- Easy operation:
-
- Temperature and time selection
- Temperature display in °C or °F
- Digital display of set and actual value
- Acoustic signal at the end of heating cycle
- Dust, oil and water-resistant operator panel
- Straightforward operation
- Automatic demagnetizing
- Thermal overload protection
Summary of Features
- Robust industrial design
- Easy operation
- Environmentally friendly
- Safety
- Saves bearings
- Automatically demagnetizes
- Suitable for bearings up to 0 kg
- Compact and flexible with movable stand
- Magnetic temperature probe up to 180°C
- Available options: Voltage from 100 – 230 V and frequency 50/60 Hz.
- Magnetic temperature probe up to 180°C
- Thermal overload protection
