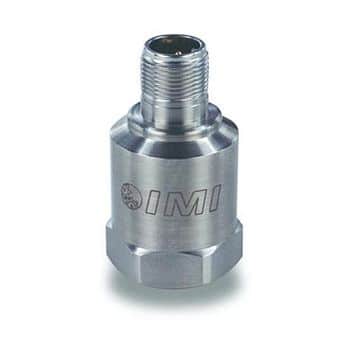

Specification
| ENGLISH | SI | ||
| Performance | |||
|     Sensitivity (±5 %) | 500 mV/g | 51 mV/(m/s²) | [1] |
|     Measurement Range | ±10 g | ±98 m/s² | |
|     Frequency Range (±5 %) | 30 to 120000 cpm | 0.5 to 2000 Hz | [4] |
|     Frequency Range (±10 %) | 22 to 240000 cpm | 0.37 to 4000 Hz | |
|     Frequency Range (±3 dB) | 12 to 360000 cpm | 0.2 to 6000 Hz | |
| Â Â Â Â Resonant Frequency | 720 kcpm | 12 kHz | [2] |
|     Broadband Resolution (1 to 10000 Hz) | 20 µg | 196 µm/sec2 | [2] |
|     Non-Linearity | ±1 % | ±1 % | [3] |
|     Transverse Sensitivity | ≤7 % | ≤7 % | |
| Environmental | |||
|     Overload Limit (Shock) | 2500 g pk | 24525 m/s² pk | |
|     Temperature Range | -65 to +250 °F | -54 to +121 °C | |
|     Temperature Response | See Graph %/°F | See Graph %/°F | [2] |
| Â Â Â Â Enclosure Rating | IP68 | IP68 | |
| Electrical | |||
|     Settling Time (within 1% of bias) | ≤3.0 sec | ≤3.0 sec | |
|     Discharge Time Constant | ≥1.0 sec | ≥1.0 sec | |
| Â Â Â Â Excitation Voltage | 18 to 28 VDC | 18 to 28 VDC | |
| Â Â Â Â Constant Current Excitation | 2 to 20 mA | 2 to 20 mA | |
| Â Â Â Â Output Impedance | |||
| Â Â Â Â Output Bias Voltage | 8 to 12 VDC | 8 to 12 VDC | |
|     Spectral Noise (10 Hz) | 0.9 µg/√Hz | 8.8 (µm/sec2)/√Hz | [2] |
|     Spectral Noise (100 Hz) | 0.7 µg/√Hz | 7.0 (µm/sec2)/√Hz | [2] |
|     Spectral Noise (1 kHz) | 0.3 µg/√Hz | 3.1 (µm/sec2)/√Hz | [2] |
| Â Â Â Â Electrical Isolation | >100000000 Ohm | >100000000 Ohm | |
| Physical | |||
| Â Â Â Â Size – Hex | 1 3/16 in | 30.2 mm | |
| Â Â Â Â Size – Height | 2 3/16 in | 55.6 mm | |
| Â Â Â Â Weight | 7.0 oz | 199 gm | |
| Â Â Â Â Mounting Thread | 1/4-28 UNF | Not Applicable | [5] |
| Â Â Â Â Mounting Torque | 2 to 5 ft-lb | 2.7 to 6.8 Nm | |
| Â Â Â Â Sensing Element | Ceramic | Ceramic | |
| Â Â Â Â Sensing Geometry | Shear | Shear | |
| Â Â Â Â Housing Material | Stainless Steel | Stainless Steel | |
| Â Â Â Â Sealing | Welded Hermetic | Welded Hermetic | |
| Â Â Â Â Electrical Connector | 2-Pin MIL-C-5015 | 2-Pin MIL-C-5015 | |
| Â Â Â Â Electrical Connection Position | Top | Top | |
All specifications are at room temperature unless otherwise specified.
