FLIR K55

Firefighting CameraHandheld Thermal CameraInfrared Thermography

Home

Products

FLIR K55

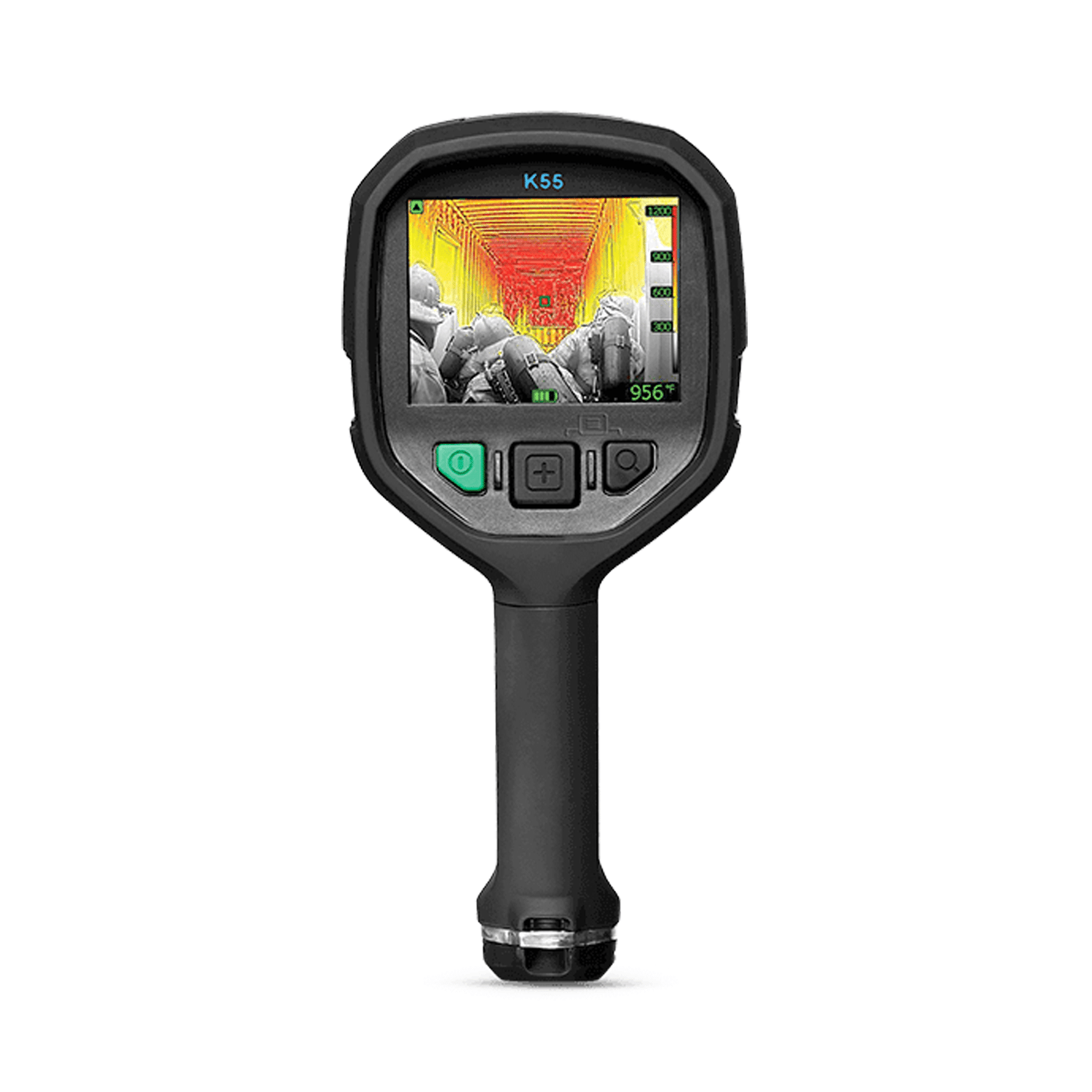

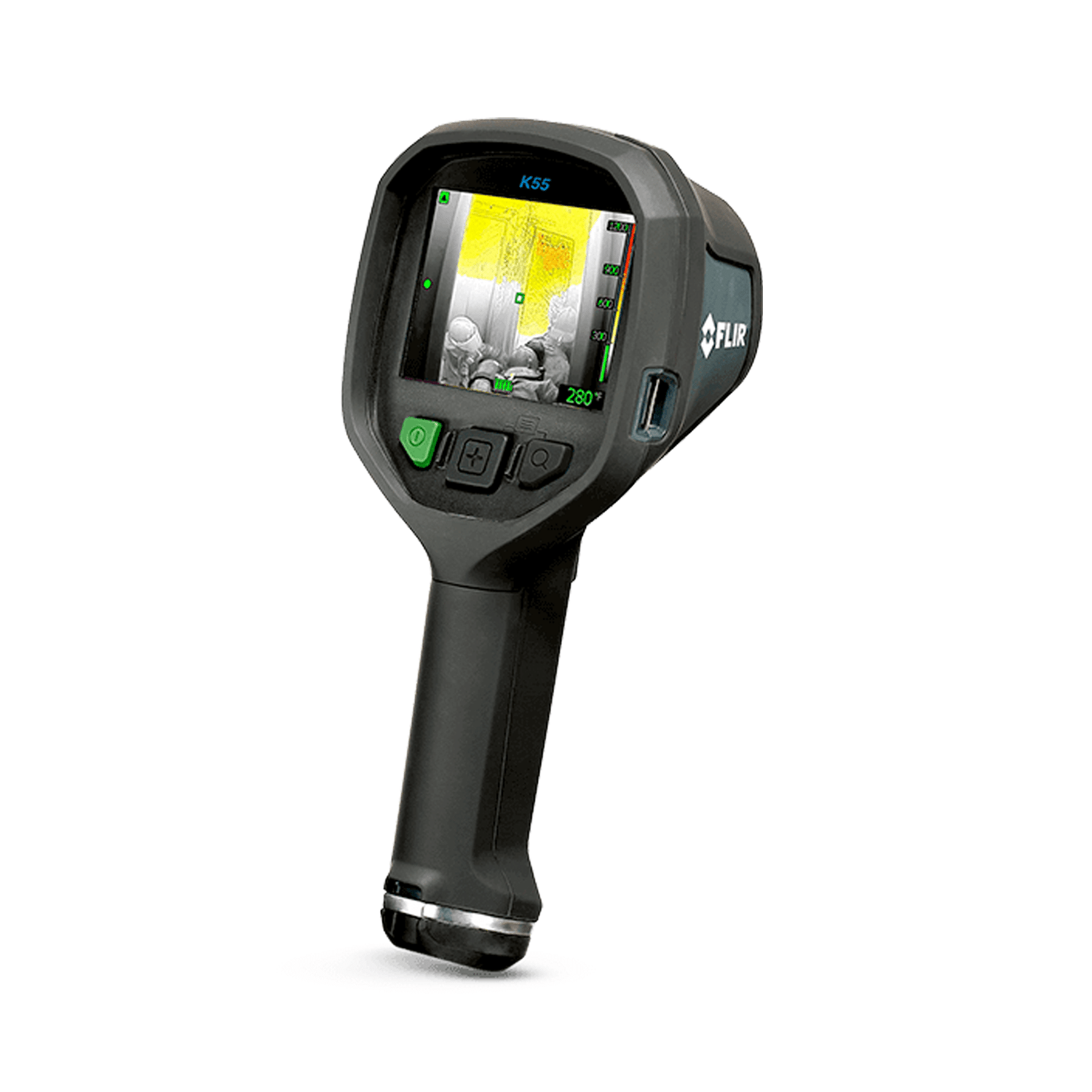

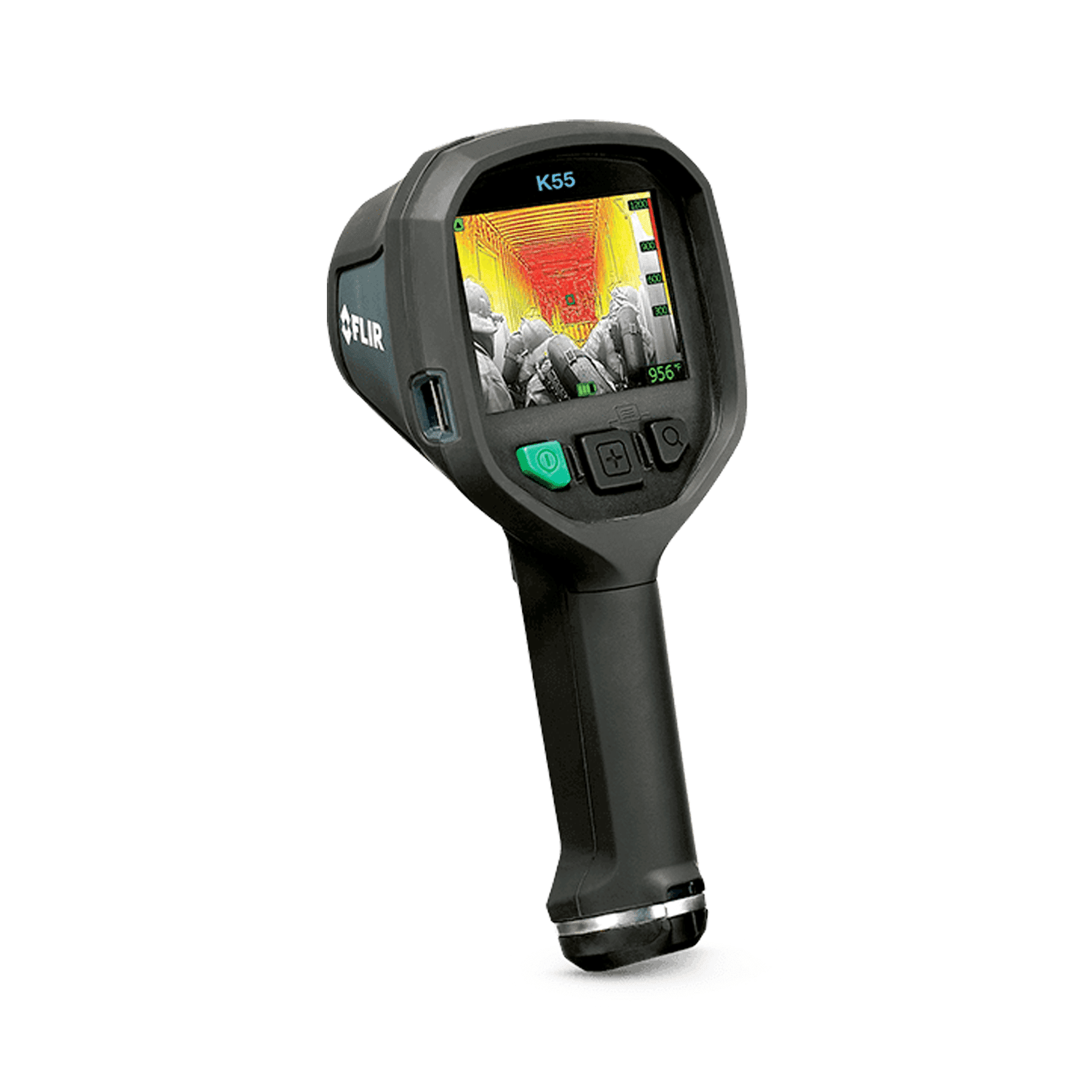

Firefighting Camera with Video and Image Capture. With the FLIR K55 in hand, firefighters can attack fires more strategically, navigate smoke-filled environments more effectively, and save lives faster.

Designed to go deeper into the fireground, the FLIR K55 delivers crystal-clear thermal images and robust video recording capability. With its 320 × 240 pixel resolution and FSX® contrast enhancement, it provides excellent detail for navigating hazardous scenes. The K55 stores up to 200 images or multiple video clips internally, helping firefighters document events for analysis and training.

Key Features:

CRISP, CLEAR IMAGERY: The maintenance-free sensor produces detail-rich 320 × 240 pixels thermal images to help you navigate easier in smokey conditions.
IN-CAMERA VIDEO STORAGE: Store up to 200 photos or video files that can be played-back in-camera or from a computer for later analysis.
EXPANDED WARRANTY: K55 cameras are protected by FLIR’s 2-5-10 Warranty: 2 years for batteries, 5 for the camera, and 10 years for the detector.

IR Resolution: 320 × 240 pixels
Thermal Sensitivity: <30 mK @ 30°C (86°F)
Image Optimization: Digital image enhancement with FSX®
Field of View (FOV): 51° × 38°
Image Storage: Up to 200 JPEG images (depending on saved video clips)
Video Storage: 200 video files, each up to 5 minutes
In-Camera Video Recording: MPEG-4 format to internal memory
Display: 4″ backlit LCD, 320 × 240 pixels
IR Image Modes:
- TI Basic firefighting mode
- Black-and-white firefighting mode
- Fire mode
- Search and rescue mode
- Heat detection mode
- Thumbnail gallery
Auto Range: Yes (selectable on/off using FLIR Tools)
Object Temperature Range:
- -20°C to 150°C (-4°F to 302°F)
- 0°C to 650°C (32°F to 1,202°F)
Accuracy: ±4°C (±7.2°F) or ±4%
Spotmeter: 1 spotmeter
NFPA 1801:2021 Compliant: No
Battery Type: Li-ion rechargeable
Battery Life: > 4 hours
Charging Time: 2 hours to 85% (status indicated by LEDs)
Operating Temperature:
- Standard: -20°C to 85°C (-4°F to 185°F)
- 150°C for 15 min, 260°C for 5 min
Storage Temperature: -40°C to 85°C
Humidity Resistance: 95% RH, 25°C–40°C (non-condensing)
Durability:
- IP67 rated
- Shock: 25 g, Vibration: 2 g
- Drop-tested: 2.0 m (6.6 ft) on concrete
Camera Weight: 1.1 ±0.05 kg (2.4 ±0.1 lb)
Dimensions (L × W × H): 120 × 125 × 280 mm
Included Accessories:
- Infrared camera
- Two batteries
- Battery charger
- Power supply
- Retractable lanyard
- Carabiner strap
- USB cable
- Printed documentation
- Hard transport case
