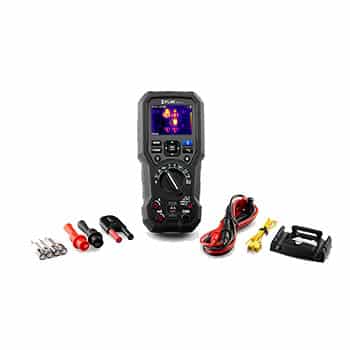

In the box of FLIR DM284

Featured

Oil Lab Training

Oil Lab Series

Asset Reliability Practitioner Training

Asset Reliability Practitioner (ARP) Category I Track B

DM284

Category Test and Measurement Instruments

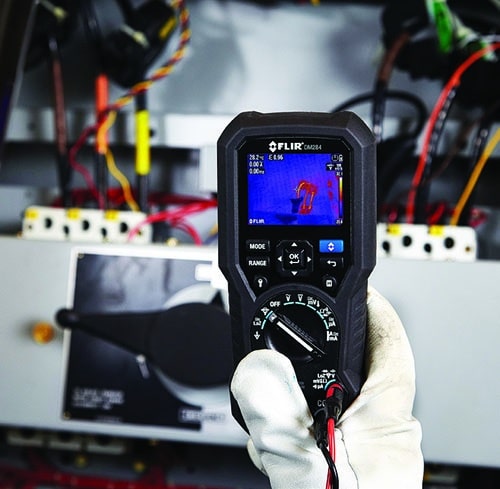

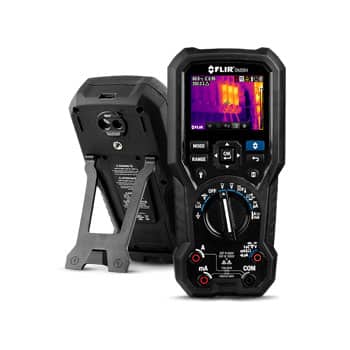

The FLIR DM284 Imaging Multimeter with IGM is a professional, all-in-one True RMS digital multimeter and thermal imager that can show you exactly where an electrical problem is to speed up troubleshooting.

Featuring Infrared Guided Measurement (IGM) technology powered by a built-in 160×120 FLIR thermal imager, the DM284 visually guides you to the precise location of an electrical problem, helping you pinpoint hot spots faster and more efficiently.

Troubleshoot Fast with IGM™
Instantly spot electrical issues and get more done with the 160×120-resolution FLIR thermal imager. Plus, the all-in-one tool is convenient to carry on you so you always have access to thermal imaging.

Solve Challenging Problems Easily
Featuring 18 measurement functions including True RMS, LoZ, and NCV, you can verify potential issues with trusted readings every time – even for the most complex measurements. The DM284 also includes a thermocouple input and allows you to view thermal and electrical measurements simultaneously.

Functional Design
The simple user interface is intuitive to use and the thermal camera features 3 color palettes to choose from. Built-in worklights and a laser pointer help you access difficult locations with lighting issues and pinpoint the location of the problem in the thermal image.

Features

IGM™
A built-in 160×120-resolution thermal camera sensor visually guides you to an electrical problem

18 measurement functions
Performs 18 measurement functions including True RMS, VFD mode, LoZ, NCV, and more

Thermocouple input + test probe
The DM284 includes high-quality test probes and a Type K thermocouple input

Smart design and functionality
Intuitive user interface, large display screen, onboard laser pointer, LED worklights

Durable
Drop-tested and IP rated for splash and water resistance

Warranty
Includes 10-year warranty

Specifications
Product Enquiry

Specifications

Specifications

Thermal Imaging
Model Number	FLIR DM284
View Thermal and Electrical / Thermocouple Measurements Simultaneously	Yes
Image Resolution	19,200 pixels (160 x 120)
Sensitivity	≤ 150 mK
Emissivity	4 Presets with Custom Adjustment
Accuracy	3°C or 3.5%
Range	14°F to 302°F (-10°C to 150°C)
FOV (w x h)	46° x 35°
Laser Pointer	Yes
Focus	Fixed
Palette	Iron, Rainbow, Greyscale
Level & Span	Auto

Measurements	Range	Accuracy
AC / DC Volts	1000V	1% / 0.09%
AC / DC mVolt	600.0mV	1% / 0.5%
VFD	1000V	±1.0%
AC / DC LoZ V	1000V	±1.5%
AC / DC mAmps	400.0mA	±1.5%
AC / DC μAmps	4,000μA	±1.0%
Resistance	50 MΩ	0.9%
Continuity	Yes	Yes
Capacitance	10.00mF	1.9%
Diode	Yes	Yes
Min/Max/Avg	Yes	Yes
Flex Clamp Range	3000A AC (Optional TA72/74)	±3.0% + 5 digits
Frequency Range	99.99kHz	0.1%
Thermocouple	Type K -40°F to 752°F (-40°C to 400°C)	±1.0% + 5.4°F (DMM) ±1.0% + 9°F (IGM)
General Meter
Drop Test	3m
IP Rating	IP54
Worklights	Yes
Display Size	2.8″

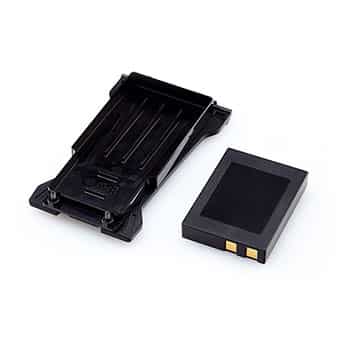

Battery Life Minimum (all modes on)	3 hrs Alkaline, 12 hrs optional rechargeable battery (TA04-KIT)
Warranty	10 year
Auto Power Off	Yes
Safety	CAT III 1000 V, CAT IV 600 V
Size (H x W x L)	200 x 95 x 49mm; Weight: 537g
