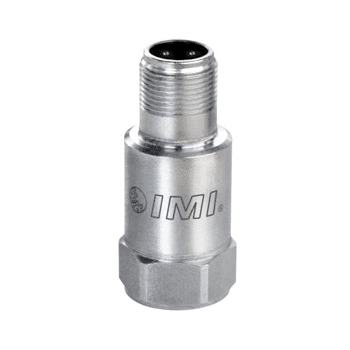

Specifications
| ENGLISH | SI | ||
| Performance | |||
| Sensitivity (±15 %) | 100 mV/g | 10.2 mV/(m/s²) | [1] |
| Measurement Range | ±50 g | ±490 m/s² | |
| Frequency Range (±3 dB) | 20 to 600000 cpm | 0.33 to 10000 Hz | [4] |
| Resonant Frequency | 1080 kcpm | 18 kHz | [2] |
| Broadband Resolution (1 to 10000 Hz) | 1000 µg | 9810 µm/sec2 | [2] |
| Non-Linearity | ±1 % | ±1 % | [3] |
| Transverse Sensitivity | ≤5 % | ≤5 % | |
| Environmental | |||
| Overload Limit (Shock) | 5000 g pk | 49050 m/s² pk | |
| Temperature Range | -65 to +250 °F | -54 to +121 °C | |
| Temperature Response | See Graph %/°F | See Graph %/°F | [2] |
| Enclosure Rating | IP68 | IP68 | |
| Electrical | |||
| Settling Time (within 1% of bias) | ≤10 sec | ≤10 sec | |
| Discharge Time Constant | ≥0.5 sec | ≥0.5 sec | |
| Excitation Voltage | 18 to 28 VDC | 18 to 28 VDC | |
| Constant Current Excitation | 2 to 20 mA | 2 to 20 mA | |
| Output Impedance | |||
| Output Bias Voltage | 8 to 12 VDC | 8 to 12 VDC | |
| Spectral Noise (10 Hz) | 50 µg/√Hz | 491 (µm/sec2)/√Hz | [2] |
| Spectral Noise (100 Hz) | 20 µg/√Hz | 196 (µm/sec2)/√Hz | [2] |
| Spectral Noise (1 kHz) | 6 µg/√Hz | 59 (µm/sec2)/√Hz | [2] |
| Electrical Protection | RFI/ESD | RFI/ESD | |
| Electrical Isolation | >100000000 Ohm | >100000000 Ohm | |
| Physical | |||
| Size – Hex | 7/8 in | 22 mm | |
| Size – Height | 2.06 in | 52.3 mm | |
| Weight | 3.3 oz | 94 gm | |
| Mounting Thread | 1/4-28 Female | 1/4-28 Female | [5] |
| Mounting Torque | 2 to 5 ft-lb | 2.7 to 6.8 Nm | |
| Sensing Element | Quartz | Quartz | |
| Sensing Geometry | Shear | Shear | |
| Housing Material | Stainless Steel | Stainless Steel | |
| Sealing | Welded Hermetic | Welded Hermetic | |
| Electrical Connector | 2-Pin MIL-C-5015 | 2-Pin MIL-C-5015 | |
| Electrical Connection Position | Top | Top | |
All specifications are at room temperature unless otherwise specified.
