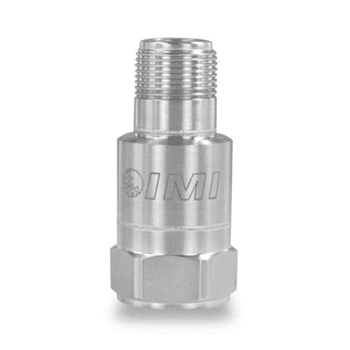

Specifications
| English: | SI: | ||
|---|---|---|---|
| Performance | |||
| Sensitivity (±20 %) | 500 mV/g | 51 mV/(m/s²) | [1] |
| Measurement Range | ±10 g | ±98 m/s² | |
| Frequency Range (±5 %) | 28 to 240000 cpm | 0.47 to 4000 Hz | [4] |
| Frequency Range (±10 %) | 20 to 300000 cpm | 0.33 to 5000 Hz | |
| Frequency Range (±3 dB) | 10 to 600000 cpm | 0.17 to 10000 Hz | |
| Resonant Frequency | 960 kcpm | 16 kHz | [2] |
| Broadband Resolution (1 to 10000 Hz) | 35 µg | 343 µm/sec2 | [2] |
| Non-Linearity | ±1 % | ±1 % | [3] |
| Transverse Sensitivity | ≤7 % | ≤7 % | |
| Environmental | |||
| Overload Limit (Shock) | 5000 g pk | 49050 m/s² pk | |
| Temperature Range | -65 to +250 °F | -54 to +121 °C | |
| Temperature Response | See Graph %/°F | See Graph %/°F | [2] |
| Enclosure Rating | IP68 | IP68 | |
| Electrical | |||
| Settling Time (within 1% of bias) | ≤10 sec | ≤10 sec | |
| Discharge Time Constant | ≥1.0 sec | ≥1.0 sec | |
| Excitation Voltage | 18 to 28 VDC | 18 to 28 VDC | |
| Constant Current Excitation | 2 to 20 mA | 2 to 20 mA | |
| Output Impedance | |||
| Output Bias Voltage | 8 to 12 VDC | 8 to 12 VDC | |
| Spectral Noise (10 Hz) | 3 µg/√Hz | 29.4 (µm/sec2)/√Hz | [2] |
| Spectral Noise (100 Hz) | 0.7 µg/√Hz | 6.9 (µm/sec2)/√Hz | [2] |
| Spectral Noise (1 kHz) | 0.5 µg/√Hz | 4.9 (µm/sec2)/√Hz | [2] |
| Electrical Isolation (Case) | >100000000 Ohm | >100000000 Ohm | |
| Physical | |||
| Size – Hex | 7/8 in | 22.2 mm | |
| Size – Height | 1.9 in | 48.3 mm | |
| Weight | 2.8 oz | 80 gm | |
| Mounting Thread | 1/4-28 Female | Not Applicable | [5] |
| Mounting Torque | 2 to 5 ft-lb | 2.7 to 6.8 Nm | |
| Sensing Element | Ceramic | Ceramic | |
| Sensing Geometry | Shear | Shear | |
| Housing Material | Stainless Steel | Stainless Steel | |
| Sealing | Welded Hermetic | Welded Hermetic | |
| Electrical Connector | 2-Pin MIL-C-5015 | 2-Pin MIL-C-5015 | |
| Electrical Connection Position | Top | Top | |
All specifications are at room temperature unless otherwise specified.
