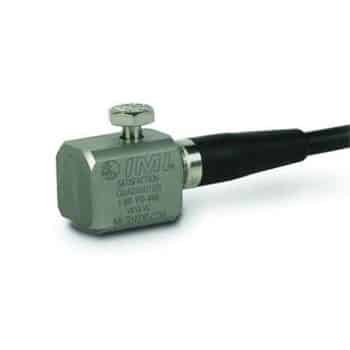

Specifications
| ENGLISH | SI | ||
| Performance | |||
| Sensitivity (±10 %) | 100 mV/g | 10.2 mV/(m/s²) | [1] |
| Measurement Range | ±50 g | ±490 m/s² | |
| Frequency Range (±3 dB) | 30 to 480000 CPM | 0.5 to 8000 Hz | [4] |
| Resonant Frequency | 1500 kcpm | 25 kHz | [2] |
| Broadband Resolution (1 to 10000 Hz) | 350 µg | 3434 µm/sec2 | [2] |
| Non-Linearity | ±1 % | ±1 % | [3] |
| Transverse Sensitivity | ≤7 % | ≤7 % | |
| Environmental | |||
| Overload Limit (Shock) | 5000 g pk | 49050 m/s² pk | |
| Temperature Range | -65 to +250 °F | -54 to +121 °C | |
| Temperature Response | See Graph %/°F | See Graph %/°F | |
| Enclosure Rating | IP68 | IP68 | |
| Electrical | |||
| Settling Time (within 1% of bias) | ≤2.0 sec | ≤2.0 sec | |
| Discharge Time Constant | ≥0.3 sec | ≥0.3 sec | |
| Excitation Voltage | 18 to 28 VDC | 18 to 28 VDC | |
| Constant Current Excitation | 2 to 20 mA | 2 to 20 mA | |
| Output Impedance | |||
| Output Bias Voltage | 8 to 12 VDC | 8 to 12 VDC | |
| Spectral Noise (10 Hz) | 8.0 µg/√Hz | 78.5 (µm/sec2)/√Hz | [2] |
| Spectral Noise (100 Hz) | 5 µg/√Hz | 49.1 (µm/sec2)/√Hz | [2] |
| Spectral Noise (1 kHz) | 4 µg/√Hz | 39.2 (µm/sec2)/√Hz | [2] |
| Electrical Isolation | >100000000 Ohm | >100000000 Ohm | |
| Physical | |||
| Size – Length | 3.70 in | 94 mm | |
| Size – Width | 0.74 in | 18.8 mm | |
| Size – Height | 0.845 in | 21.5 mm | |
| Weight | 2.61 oz | 74.0 gm | |
| Mounting Thread | 1/4-28 Male | No Metric Equivalent | [5] |
| Mounting Torque | 2 to 5 ft-lb | 2.7 to 6.8 Nm | |
| Sensing Element | Ceramic | Ceramic | |
| Sensing Geometry | Shear | Shear | |
| Housing Material | Stainless Steel | Stainless Steel | |
| Sealing | Welded Hermetic | Welded Hermetic | |
| Electrical Connector | Moulded Integral Cable | Moulded Integral Cable | |
| Electrical Connection Position | Side | Side | |
| Cable Length | 10 ft | 3.0 m | |
| Cable Type | Polyurethane | Polyurethane | [6] |
All specifications are at room temperature unless otherwise specified.
