621B41

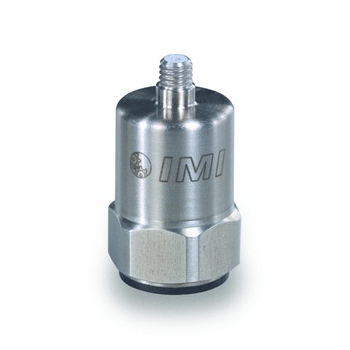

High freq. laboratory ceramic shear ICP® accel, 100 mV/g, 0.8 to 20k Hz, 316L SS case, top exit, 10-32 conn., frequency sweep ISO 17025 accredited calibration

Specifications

English: SI:
Performance
Sensitivity (±5 %) 100 mV/g 10.2 mV/(m/s²) [1]
Measurement Range ±50 g ±490 m/s²
Frequency Range (±5 %) 144 to 600000 cpm 2.4 to 10000 Hz [4]
Frequency Range (±10 %) 102 to 900000 cpm 1.7 to 15000 Hz
Frequency Range (±3 dB) 48 to 1200000 cpm 0.8 to 20000 Hz
Resonant Frequency 2100 kcpm 35 kHz [2]
Non-Linearity ±1 % ±1 % [3]
Transverse Sensitivity ≤5 % ≤5 %
Environmental
Overload Limit (Shock) 5000 g pk 49050 m/s² pk
Temperature Range -65 to +250 °F -54 to +121 °C
Temperature Response See Graph %/°F See Graph %/°F [2]
Enclosure Rating IP68 IP68
Electrical
Settling Time (within 1% of bias) ≤5.0 sec ≤5.0 sec
Discharge Time Constant ≥0.2 sec ≥0.2 sec
Excitation Voltage 18 to 28 VDC 18 to 28 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance
Output Bias Voltage 8 to 12 VDC 8 to 12 VDC
Spectral Noise (10 Hz) 30 µg/√Hz 294 (µm/sec2)/√Hz [5]
Spectral Noise (100 Hz) 10 µg/√Hz 98.1 (µm/sec2)/√Hz [2]
Spectral Noise (1 kHz) 5 µg/√Hz 49.5 (µm/sec2)/√Hz [5]
Electrical Isolation (Base) >100000000 Ohm >100000000 Ohm
Physical
Size – Hex 11/16 in 17.5 mm
Size – Height 1.03 in 26.2 mm
Weight 1.06 oz 30 gm
Mounting Thread 10-32 Female 10-32 Female [6]
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Stainless Steel Stainless Steel
Sealing Welded Hermetic Welded Hermetic
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Electrical Connection Position Top Top
All specifications are at room temperature unless otherwise specified.





Product Notes
[1] Conversion Factor 1g = 9.81 m/s².
[2] Typical.
[3] Zero-based, least-squares, straight line method.
[4] The high frequency tolerance is accurate within ±10% of the specified frequency.
[5] Typical value.
[6] 10-32 has no equivalent in S.I. units.
