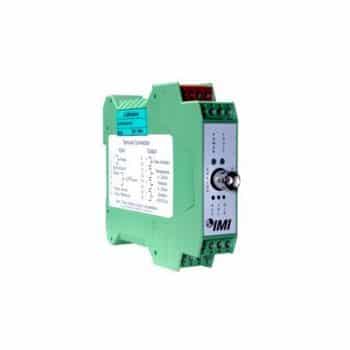

| ENGLISH | SI | ||
| Performance | |||
| Channels | 1 | 1 | |
| Input Signal (Vibration) | ±100 mV/g | ±10.2 mV/(m/s²) | [8] |
| Input Signal (Temperature) | 0 to 1.2 VDC | 0 to 1.2 VDC | [5] |
| Output Signal (DC Vibration) | 4 to 20 mA | 4 to 20 mA | [4] |
| Output Signal (DC Vibration) | 0 to 5 VDC | 0 to 5 VDC | [6][9] |
| Output Signal (Temperature) | 0 to 10 VDC | 0 to 10 VDC | [6][9] |
| Output Signal (DC Vibration) | 4 to 20 mA | 4 to 20 mA | [5] |
| Output Signal (±0.01 %) (AC Vibration) | 100 mV/g | 10.2 mV/(m/s²) | [1] |
| Frequency Range (-3 dB) (Acceleration) | 180 to 600000 cpm | 3 to 10k Hz | [2][10][11] |
| Frequency Range (-3 dB) (Velocity) | 210 to 600000 cpm | 3.5 to 10k Hz | [2][10][11] |
| Frequency Range (-3 dB) (Displacement) | 210 to 60000 cpm | 3.5 to 1000 Hz | [2][3][10] |
| Output Range (DC Acceleration) | 0 to 5.00 g pk or rms | 0 to 49.03 m/s2 pk or rms | [7][8][9] |
| Output Range (DC Acceleration) | 0 to 10.00 g pk or rms | 0 to 98.06 m/s2 pk or rms | [7][8][9] |
| Output Range (DC Acceleration) | 0 to 20.00 g pk or rms | 0 to 196.12 m/s2 pk or rms | [7][8][9] |
| Output Range (DC Velocity) | 0 to 0.5 in/sec pk or rms | 0 to 12.7 mm/s pk or rms | [7][8][9] |
| Output Range (DC Velocity) | 0 to 1.00 in/sec pk or rms | 0 to 25.4 mm/s pk or rms | [7][8][9] |
| Output Range (DC Velocity) | 0 to 2.00 in/sec pk or rms | 0 to 50.8 mm/s pk or rms | [7][8][9] |
| Output Range (DC Displacement) | 0 to 10.0 mil pk – pk | 0 to 0.254 mm pk – pk | [7][8][9] |
| Output Range (DC Displacement) | 0 to 20.0 mil pk – pk | 0 to 0.508 mm pk – pk | [7][8][9] |
| Output Range (DC Displacement) | 0 to 40.0 mil pk – pk | 0 to 1.02 mm pk – pk | [7][8][9] |
| Environmental | |||
| Temperature Range (Operating) | -13 to 158 °F | -25 to 70 °C | |
| Temperature Range (Storage) | -40 to 257 °F | -40 to 125 °C | |
| Humidity Range (Non-Condensing) | 0 to 95 % | 0 to 95 % | |
| Electrical | |||
| Power Required | DC power | DC power | |
| DC Power | 23 to 25 VDC | 23 to 25 VDC | |
| DC Power (maximum) | 100 mA | 100 mA | |
| Settling Time | <2 min | <2 min | |
| Excitation Voltage (delivered to the sensor) | 17 to 19 VDC | 17 to 19 VDC | [12][13] |
| Constant Current Excitation (delivered to the sensor) | 3 to 5 mA | 3 to 5 mA | [12][13] |
| Output Span (±5.0 %) (DC Vibration Current Output) | 16 mA | 16 mA | |
| Output Span (±5.0 %) (Temperature Output) | 16 mA | 16 mA | |
| Output Span (±5.0 %) (DC Vibration Voltage Output) | 5 or 10 VDC | 5 or 10 VDC | [9] |
| Physical | |||
| Electrical Connector (input/output) | Removable Screw Terminals | Removable Screw Terminals | |
| Electrical Connector (raw vibration output) | BNC Jack | BNC Jack | |
| Housing Material | Polyamide | Polyamide | |
| Size – Height | 3.9 in | 99 mm | |
| Size – Width | 0.9 in | 22.5 mm | |
| Size – Depth | 4.5 in | 114.5 mm | |
| Weight (Maximum) | 6.4 oz | 127 | |
| Screw Terminal Wire Size | 24-14 AWG | 24-14 AWG | |
| Din Rail Mount | 1.38 in | 35 mm | |
| Status Indicator (Power “on”) | Green LED | Green LED | |
| Status Indicator (Input Fault) | Red LED | Red LED | |
| Status Indicator (Measurement Mode – Acceleration) | Green LED | Green LED | |
| Status Indicator (Measurement Mode – Velocity) | Green LED | Green LED | |
| Status Indicator (Measurement Mode – Displacement) | Green LED | Green LED | |
* All specifications are at room temperature unless otherwise specified
Specification Notes
[ 1] Achieved with 100 mV/g ICP® accelerometer input.
[ 2] Attenuation is -40 dB/decade.
[ 3] Maximum 1,000 Hz for displacement.
[ 4] Output current voltage will fluctuate at frequencies below 5 Hz.
[ 5] Requires use of accelerometer with “TO” temperature output option.
[ 6] Factory set, 0-5 VDC.
[ 7] Factory set, 1.0 in/sec peak
[ 8] Output measurement range is based upon input from 100 mV/g ICP® accelerometers and will be scaled inversely proportional to any percentage deviation of this input.
[ 9] Internal Dip switch selectable
[ 10] The low-frequency tolerance is accurate within ± 0.5 Hz of the specified frequency.
[ 11] The high-frequency tolerance is accurate within ± 0.5 kHz of the specified frequency.
[ 9] Internal Dip switch selectable
[ 12] Jumper selectable for 18 VDC regulated, 24 VDC power supply voltage or ICP® sensor excitation disabled
[ 13] 4 mA constant current diode is internal to 9330VT
[ 14] See PCB Declaration of Conformance PS152 for details.
