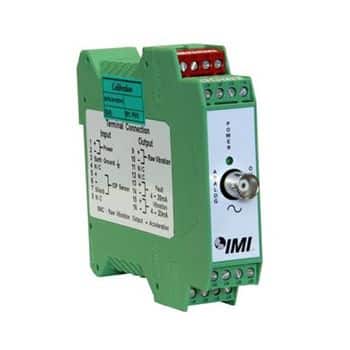

Bearing Fault Detectors - 682B05

Specifications

	ENGLISH	SI
Performance
Input Signal	100 mV/g	10.2 mV/(m/s²)
Frequency Response (±3 dB)	10 to 1k Hz	10 to 1k Hz
Frequency Response (±3 dB)	1k or 5k to 100 kHz	1k or 5k to 100 kHz	[1]
Measurement Range	50 g	50 g
Measurement Range	5/10/20 g	49.0/98.1/196.1 m/s²	[3]
Measurement Range	0.5/1/2 in/sec	12.7/25.4/50.8 mm/sec	[4]
Output Range	4 to 20 mA	4 to 20 mA	[1][2]
Sampling Time (±15 %)	7 sec	7 sec
Span (±5 %)	16 mA	16 mA
Control Interface
Power LED	Green	Green
Environmental
Warm Up	<2 minutes	<2 minutes
Temperature Range	32 to 158 °F	0 to 70 °C
Temperature Range	-40 to 257 °F	-40 to 125 °C
Electrical
Supply Voltage	20 to 28 VDC	20 to 28 VDC
Current Consumption	≤150 mA	≤150 mA
Excitation Voltage (±1 V)	24 VDC	24 VDC
Constant Current Excitation (±1 mA)	4 mA	4 mA
Raw Vibration Output	+/-0.01 % of Input	+/-0.01 % of Input
Load Resistance	500 Ohm	500 Ohm
Physical
Size – Width	0.9 in	22.5 mm
Size – Height	3.9 in	99 mm
Size – Depth	4.5 in	114.5 mm
Weight	<5 oz	<142 gm
Housing Material	Polyamide	Polyamide
Screw Terminal Wire Size	24-14 AWG	0.2 – 2.5 mm²
Electrical Connector	Removable Screw Terminals	Removable Screw Terminals
Electrical Connector	BNC Jack	BNC Jack
Din Rail Mount	1.38 in	35 mm
