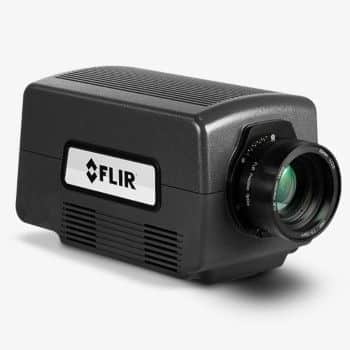

With the FLIR A8580, users can maximize the number of measurement pixels on their target, ensuring unparalleled accuracy in their thermal imaging tasks. Its simple single cable connectivity via Gigabit Ethernet or CoaXPress provides complete camera control and seamless data capture in FLIR Research Studio software, enabling users to analyze and understand data faster than ever before. Experience enhanced efficiency and performance with the FLIR A8580 LWIR SLS cameras.
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
| Resolution | 1280 × 1024 |
| Pixel Size [Square] | 12 µm |
| Spectral Range | 7.5 µm (lower), 11.5–12.5 µm (upper) |
| Detector Type | Strained Layer Superlattice (SLS) |
| Camera f-number | f/2.5 |
| Dynamic Range | 14-bit |
| NETD | ≤45 mK (≤40 mK typical) |
| Frame Rate [Full Window] | Programmable; 0.0015 Hz to ~45 Hz (GigE), 60 Hz (CXP) |
| Standard Temperature Range [with band matched optics] | 250°C to 2000°C (ND1), 500°C to 3000°C (ND2) |
| Optional Temperature Range | Behind lens mount for standard 1-inch diameter filters |
| Filtering | Internal 4-position motorized filter wheel; factory installed filters |
| Focus | Motorized (compatible w/manual lenses) |
