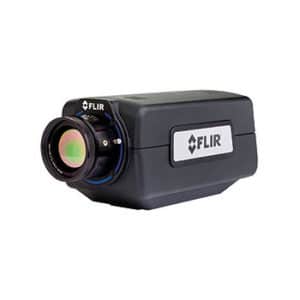

FLIR A66xxsc

Category

Yellotec is proud to present the Thermal Imaging Camera for Continuous Gas Leak Detection

Yellotec specializes in the stocking and supplying of Infrared Thermography Automation tools. With ranges such as the Teledyne Flir A66xxsc, you can visualize and pinpoint gas leaks easily and effectively. Any optical gas imaging camera from Flir, not only helps you visualize and pinpoints gas leaks but is also a great option for continuously scanning installations in areas that are remote and difficult to access. With great options in the Automation Industry, available with Teledyne Flir and Yellotec,  there is no reason for you to continue to struggle with your optical gas imaging needs. Contact Yellotec for more information about our A66xxsc and other great tools

Additional Info

Continuous monitoring means that you will immediately see when a dangerous or costly gas leak appears so that immediate action can be taken. Optical gas imaging (OGI) cameras are widely used in industrial settings such as oil refineries, natural gas processing plants, offshore platforms, chemical/ petrochemical industries, and biogas and power generation plants.

OGI cameras like the FLIR A6604 can detect harmful greenhouse gases that can seriously harm the environment.

A cooled detector makes the smallest temperature differences visible
FLIR A6604 contains a cooled Indium Antimonide (InSb) detector that produces thermal images of 640 x 512 pixels. More pixels give you a wider field of view so that you can monitor larger installations. It also offers an ultra-crisp image.

The high sensitivity mode further enhances the detection level of the camera so that the smallest gas leaks can be detected.

Easy to control

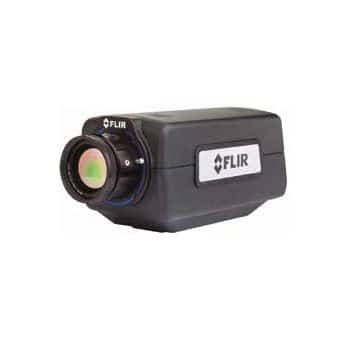

FLIR A6604
 is easy to control from a safe distance. It can be fully controlled over Ethernet and easily integrated into a TCP/ IP network. The FLIR A6604 is GigE Vision and GenICam compatible.

FLIR A6604 is the perfect tool to detect a host of different gases: Benzene, Ethanol, Ethylbenzene, Heptane, Hexane, Isoprene, Methanol, MEK, MIBK, Octane, Pentane, Toluene, Xylene, Butane, Ethane, Methane, Propane, Ethylene, Propylene, 1Pentene,

Specifications

Imaging & Optical Data FLIR A6604
IR resolution 640 x 512 pixels
Thermal sensitivity/NETD <20 mK @ +30°C (+86°F)
Field of view (FOV) v 21.4° x 17.5° with 25 mm lens, 11.0° x 8.9° with 50 mm lens, 5.5° x 4.4° with 100 mm lens
Minimum focus distance NA
F-number NA
Focus Manual
Zoom 1x or 2x digital
Digital image enhancement High Sensitivity mode
Detector data
Detector type Focal Plane Array (FPA), cooled InSb
Spectral range 3.2–3.4 μm
Image presentation
Automatic image adjustment Continuous/manual; linear or histogram based
Manual image adjustment Level/span Level/span
Image presentation modes
Image modes IR-image, High Sensitivity Mode (HSM)
Electronics and data rate
Full frame rate Full window 60 Hz, 1/2 window 240 Hz, 1/4 window 480 Hz
Temperature ranges
Temperature range –20°C to +350°C (–4°F to +662°F) ; up to 1,500 C (2732 F) or up to 2,000 C (3,662 F) optional
Ethernet
Ethernet Control, image
Ethernet, type 1 Gbps
Ethernet, standard IEEE 802.3
Ethernet, connector type RJ-45
Ethernet, communication Communication TCP/IP
Ethernet, video streaming Video streaming, NTSC, PAL
Ethernet, image streaming Image streaming, GigE Vision
Ethernet, protocols Protocols, GigE Vision
Data communication interfaces
Interfaces Gigabit Ethernet (GEV/Genicam compatible)
Composite video
Video out NTSC / PAL
Power system
DC operation 24 VDC, 24 W max.
Start-up time Typically 7 min. @ 25°C (+77°F)
Environmental data
Operating temperature range –40°C to +50°C
Storage temperature range –55°C to +68°C
Humidity (operating and storage) IEC 68-2-30/24 h 95% relative humidity +25°C to +40°C (+77°F to +104°F) (2 cycl)
Directives Low voltage directive: 2006/95/EC / EMC: 2004/108/EC / RoHS: 2002/95/EC / WEEE: 2002/96/EC
EMC EN61000-6-4 (Emission) / EN61000-6-2 (Immunity) / FCC 47 CFR Part 15 class A (Emission) / EN 61 000-4-8, L5
Encapsulation IP 50
Bump 40g, 11msec half sine puls
Vibration 4.3g RIMS random vobration 3-axes
Physical data
Weight 2.3 kg (5 Ibs)
Camera size, excl. lens (L × W × H) 196 x 102 x 102 mm (7.7″ x 4.0″ x 4.0″)
Housing material Aluminum
