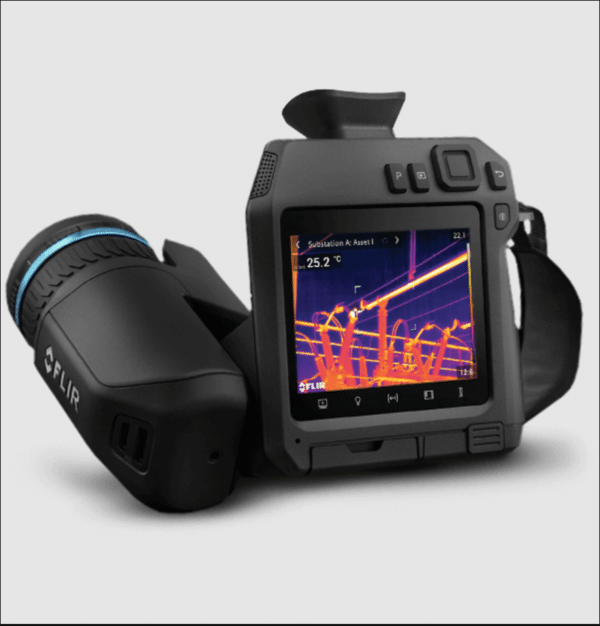

With advanced features including unmatched temperature measurements down to -40°C, accuracy as good as 1°C/1%, 1-Touch Level/Span contrast enhancement, and laser-assisted autofocus, you’ll get highly accurate temperature measurements every time.
Pair the T865 with a 6 FOV IR lens to perform inspections on small targets from long distances. The on-board Inspection Route system helps you record temperature data and imagery in a logical sequence for faster troubleshooting and repair.
The T865 also features FLIR Ignite for automatic uploading of images directly from the camera to the cloud for easy, secure storage and sharing. Adding a FLIR T865 camera to a condition monitoring/predictive maintenance program can help reduce maintenance costs, improve system efficiency and reliability, and prevent downtime due to outages.
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
| IR Resolution | 640 × 480 pixels |
| Thermal Sensitivity/NETD | <50 mK at 30°C (14° lens) |
| Accuracy |
|
| Digital Camera | 5 MP, with a built-in LED photo/video lamp |
| Display | 4″, 640 × 480-pixel touchscreen LCD with auto-rotation |
| Storage Media | Removable SD card |
| IMAGING & OPTICAL | |
| Colour Palettes | Iron, Rainbow, Rainbow HC, White-hot, Black hot, Arctic, Lava |
| Detector Type and Pitch | Uncooled microbolometer, 12 µm |
| Digital Camera | 5 MP, with a built-in LED photo/video lamp |
| Digital Zoom |
|
| f-number | 1.5 |
| Focus | Continuous with laser distance meter (LDM), one-shot LDM, one-shot contrast, manual |
| Image Frequency | 30 Hz |
| IR Resolution | 320 × 240 pixels |
| Lens Identification | Automatic |
| Minimum Focus Distance | 1.0 m |
| Non-radiometric IR video streaming | H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi |
| Picture-in-Picture | Resizable and movable |
| Radiometric IR video recording | Real-time radiometric recording (.csq) |
| Radiometric IR video streaming | Yes, over UVC |
| Spectral Range | 7.5-14 µm |
| Thermal Sensitivity/NETD |  <50 mK at 30°C (14° lens) |
| UltraMax | Quadruples pixel count; activated in the menu and processed in FLIR reporting software. |
| Viewfinder | Yes |
| MEASUREMENT & ANALYSIS | |
| Accuracy | ±1°C (±1.8°F): 5 to 100°C (41 to 212°F), ±1%: 100 to 120°C (212 to 248°F), ±2°C (±3.6°F): -40 to 100°C (-40 to 212°F), ±2%: 100 to 650°C (212 to 1202°F), 300 to 2000°C (572 to 3632°F) |
| Measurement Presets | No measurement, centre spot, hot spot, cold spot, User Preset 1, User Preset 2 |
| Object Temperature Range | -40°C to 120°C (-40°F to 248°F); 0°C to 650°C (32°F to 1202°F) 300°C to 2000°C (572°F to 3632°F) |
| Spot Meter | 10 ea. in live mode |
| USER INTERFACE | |
| Display | 4″, 640 × 480-pixel touchscreen LCD with auto-rotation |
| Text |
|
| Voice | 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth |
| POWER | |
| Battery operating time | Approx. 4 hours at 25°C (77°F) ambient temperature and typical use |
| Battery type | Li-ion battery, charged in camera or on a separate charger |
| ENVIRONMENTAL & CERTIFICATIONS | |
| Operating Temperature Range | -15°C to 50°C (5°F to 122°F) |
| Safety |
|
| Storage Temperature Range | -40°C to 70°C (-40°F to 158°F) |
| GENERAL | |
| Laser Pointer | Yes |
| Packaging | Infrared camera with lens, small viewfinder eyecup, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Pro (3 month subscription) + FLIR Route Creator Plugin for Thermal Studio Pro (3 month subscription)Â |
