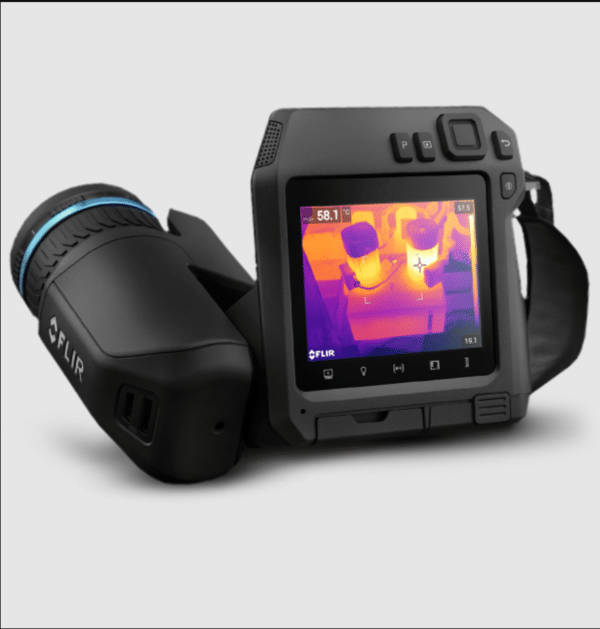

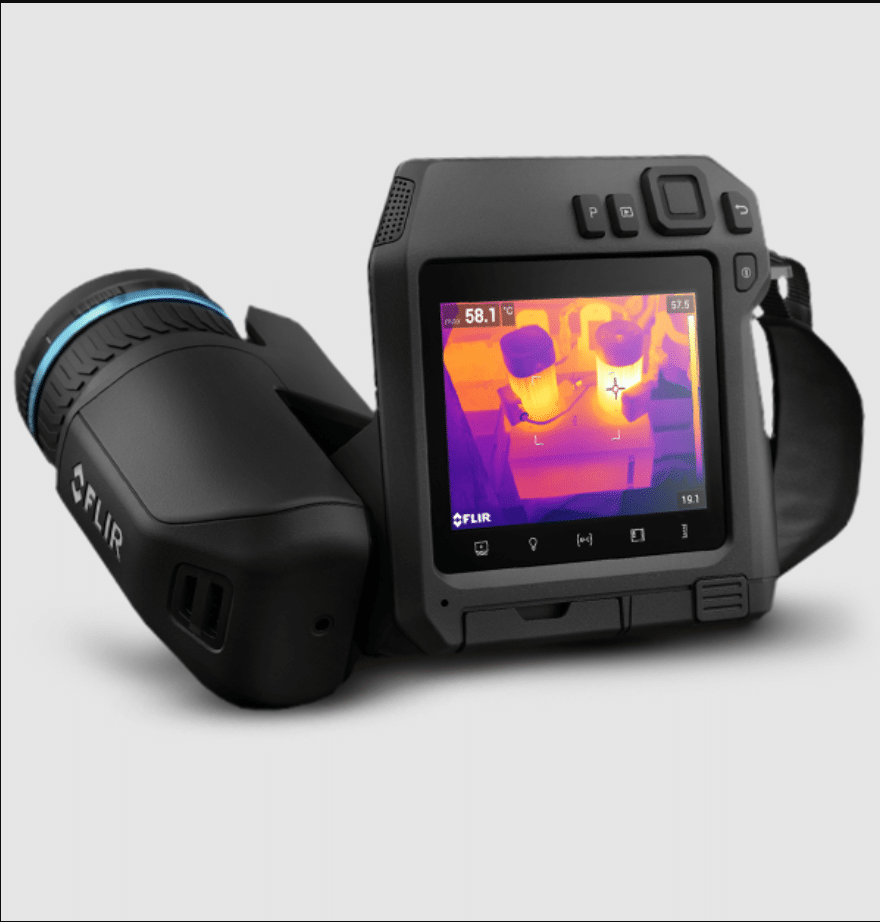

Advanced on-camera measurement tools such as 1-Touch Level/Span, plus laser-assisted autofocus, ensure you’ll record accurate temperature measurements every time. With onboard FLIR Inspection Route mode, you can download and run survey plans to your camera from FLIR Thermal Studio Pro (with FLIR Route Creator plugin).
Together these systems will help you record temperature data and imagery in a logical sequence for faster troubleshooting and repair. The T560 also features FLIR Ignite for automatic uploading of images directly from the camera to the cloud for easy, secure storage and sharing. The purchase of a T560 camera includes a 3-month subscription to FLIR Thermal Studio Pro and FLIR Route Creator.
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
| Thermal Sensitivity/NETD | |
| Accuracy |
|
| Digital Camera | 5 MP, with a built-in LED photo/video lamp |
| Display | 4″, 640 × 480-pixel touchscreen LCD with auto-rotation |
| Storage Media | Removable SD card |
| IMAGING & OPTICAL | |
| Camera software update | Using a USB cable or SD card |
| Colour | Black |
| Colour Palettes | Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC |
| Detector Type and Pitch | Uncooled microbolometer, 12 µm |
| Digital Camera | 5 MP, with a built-in LED photo/video lamp |
| Digital Camera FOV | 53° × 41° |
| Digital Zoom | 1-8× continuous |
| Field of View | 14° × 10° |
| F-Number | 1.5 |
| Focal Length | 29 mm (1.41 in) |
| Focus |
|
| Frame Rate [Full Window] | 30 Hz |
| Gallery | Yes |
| Image Frequency | 30 Hz |
| Laser Alignment | Position is automatically displayed on the infrared image |
| Lens | 14° |
| Lens Identification | Automatic |
| Minimum Focus Distance | 1.0 m (3.28 ft) |
| Minimum Focus Distance with MSX | 1.0 m (3.28 ft) |
| Non-radiometric IR video streaming | H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi |
| Picture-in-Picture | Resizable and movable |
| Radiometric IR video recording | Real-time radiometric recording (.csq) |
| Radiometric IR video streaming | Yes, over UVC |
| Spatial resolution (IFOV) | 0. 4 mrad/pixel |
| Spectral Range | 7.5-14 µm |
| Thermal Sensitivity/NETD | |
| UltraMax | Quadruples pixel count; activated in menu and processed in FLIR Tools |
| Video Lamp | Built-in LED light |
| Viewfinder | No |
| Visual Image | Yes |
| Visual Video Recording | H.264 to memory card |
| Visual Video Streaming | Yes |
| MEASUREMENT & ANALYSIS | |
| Accuracy | ±2°C (±3.6°F) or ±2% of reading |
| Automatic hot & cold detection | Automatic maximum/minimum markers within an area |
| Colour Alarm (Isotherm) | Above, Below, Interval, Condensation (moisture/humidity/dewpoint), Insulation |
| Difference Temperature | Yes |
| Emissivity Correction | Yes, variables from 0.01 to 1.0 or selected from the materials list |
| Languages | 21 |
| Measurement Corrections | Yes |
| Measurement Function Alarm |
|
| Measurement Presets | No measurements, center spot, hot spot, cold spot. User Preset 1, User Preset 2 |
| Object Temperature Range |
|
| Reference Temperature | Yes |
| USER INTERFACE | |
| Display | 4″, 640 × 480-pixel touchscreen LCD with auto-rotation |
| Display Technology | ISP |
| Touch Screen | Optically bonded PCAP |
| Voice | 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth |
| POWER | |
| Battery operating time | Approx. 4 hours at 25°C (77°F) ambient temperature and typical use |
| Battery type | Li-ion battery, charged in camera or on a separate charger |
| Battery voltage | 3.6 V |
| Battery weight | 195 g (6.89 oz) |
| Charging system | In-camera (AC adapter or 12 V from a vehicle) or two-bay charger |
| Charging Temperature | 0°C to 45°C (32°F to 113°F) |
| External Power Operation | AC adapter 90–260 V AC (50/60 Hz) or 12 V from a vehicle (cable with a standard plug, optional) |
| Power Management | Automatic shut-down and sleep mode |
| ENVIRONMENTAL & CERTIFICATIONS | |
| EMC | ETSI EN 301 489-1 (radio), ETSI EN 301 489-17, EN 61000-6-2 (immunity), EN 61000-6-3 (emission), FCC 47 CFR Part 15 Class B (emission) |
| Humidity (Operating and Storage) |
|
| Operating Temperature Range | -15 to 50°C (5 to 122°F) |
| Â Radio Spectrum | ETSI EN 300 228, FCC Part 15.249, RSS-247 Issue 2 |
| Â Safety | EN/UL/CSA/PSE 60950-1 |
|  Storage Temperature Range |  -40 to 70°C (-40 to 158°F) |
| Tripod Mounting | UNC 1/4″-20 |
| Â Warranty | Â http://www.flir.com/warranty/ |
| GENERAL | |
| Housing material | PCABS with TPE, magnesium |
| Laser Pointer | Class 2, 0.05–40 m (0.16–131 ft) ±1% of measured distance |
| Packaging | Infrared camera with lens, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Pro (3-month subscription) + FLIR Route Creator Plugin for Thermal Studio Pro (3-month subscription) |
| Packaging Size | 500 × 190 × 370 mm (19.7 × 7.5 × 14.6 in) |
| Size (L x W x H) | Lens horizontal: 140 × 201.3 × 167.3 mm (5.5 × 7.9 × 6.6 in) |
| Weight [battery included] | 1.4 kg (3.1 lb) |
