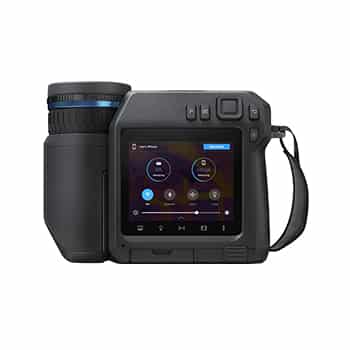

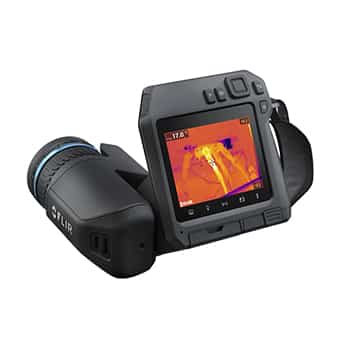

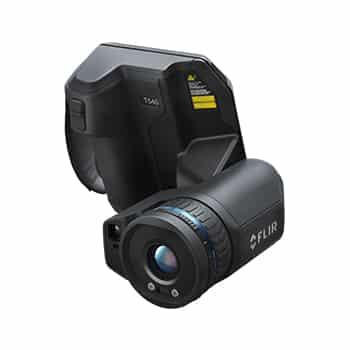

With the 180° rotating optical block, vibrant LCD display, and streamlined form factor, the T500-Series offers inspectors the necessary tools to support comprehensive inspections in challenging conditions, especially when equipment is obstructed from view or difficult to access.
Outstanding Image Clarity
The T540 uses the power of FLIR Vision Processing™ to deliver detailed, smooth pictures with very little image noise. FLIR Vision Processing combines IR resolution, MSX®, and UltraMax® image enhancement with FLIR’s proprietary adaptive filtering algorithms to produce brilliant thermal images with up to 3.1 million pixels. Plus, the T540 is sensitive enough to detect temperature differences down to <30 mK, for clear, low-noise results.
Key Features:
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
| Color alarm (isotherm) | •Above •Below •Interval •Condensation (moisture/humidity/dewpoint) •Insulation |
| Cover Glass Material | Dragontrail® |
| Difference Temperature | Yes |
| Display Technology | IPS |
| Focal Length | 17 mm (0.67 in.), 24° |
| Housing material | PCABS with TPE, magnesium |
| IR Resolution | 464 × 348 pixels |
| Languages | 21 |
| Laser Alignment | Position is automatically displayed on the infrared image |
| Laser Pointer | Class 2, 0.05–40 m (0.16–131 ft.) ±1% of measured distance |
| Packaging Size | 500 x 190 x 370 mm (19.7 x 7.5 x 14.6 in.) |
| Programmable Buttons | 2 |
| Screening | 0.5°C (0.9°F) accuracy at 37°C (98.6°F) with reference |
| Size (L x W x H) | Lens horizontal: 140 × 201.3 × 167.3 mm (5.5 × 7.9 × 6.6 in.) |
| Spectral Range | 7.5 – 14.0 µm |
| Tripod Mounting | UNC 1/4″-20 |
| Warranty | http://www.flir.com/warranty/ |
| Text | Predefined list or touchscreen keyboard |
| Time Lapse [Infrared] | 10 sec to 24 hrs |
| Voice | 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth |
| Weight & Dimensions (without lens) | 1.3 kg (2.9 lbs), 140 x 201 x 84 mm (5.5 x 7.9 x 3.3 in) |
| Audio | Microphone and speaker for voice annotation of images |
| Communication Interfaces | USB 2.0, Bluetooth, Wi-Fi |
| METERLiNK – Bluetooth | Communication with headset and external sensors |
| Remote Control | •Using FLIR Tools (using USB cable) •FLIR Tools Mobile (over Wi-Fi) |
| Storage Media | Removable SD card |
| USB | USB Type-C: data transfer/video/power |
| USB – Standard | USB 2.0 High Speed |
| Video Out | DisplayPort over USB Type-C |
| METERLiNK | Wireless connection (Bluetooth) to: FLIR meters with METERLiNK |
| EMC |
|
| Emissivity Correction | Yes, variable from 0.01 to 1.0 or selected from materials list |
| Humidity (Operating and Storage) | IEC 60068-2-30/24 hours, 95% relative humidity, 25–40°C (77–104°F)/2 cycles |
| Operating Temperature Range | –15°C to 50°C (5°F to 122°F) |
| Radio Spectrum | •ETSI EN 300 228 •FCC Part 15.249 •RSS-247 Issue 2 |
| Safety | EN/UL/CSA/PSE 60950-1 |
| Storage Temperature Range | –40°C to 70°C (-40°F to 158°F) |
| Shock & Vibration &Encapsulation | 25 g / IEC 60068-2-27, 2 g / IEC 60068-2-6 / IP 54; EN/UL/CSA/PSE 60950-1 |
| Aspect ratio | 4:3 |
| Auto Rotation | Yes |
| Camera software update | Use PC software FLIR Tools |
| Color | Black |
| Color palettes | Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC |
| Detector Type and Pitch | Uncooled microbolometer, 17 µm |
| Digital Camera | 5 MP, with built-in LED photo/video lamp |
| Digital Camera Focus | Fixed |
| Digital Camera FOV | 53° × 41° |
| Digital Zoom | 1-4x continuous |
| Display | 4″, 640 x 480 pixel touchscreen LCD with auto-rotation |
| f-number | 1.3, 24° |
| Field of View | 24° × 18° |
| Field of view match | Yes |
| Focus | Continuous with laser distance meter (LDM), one- shot LDM, one-shot contrast, manual |
| Gallery | Yes |
| Global Positionsing System [GPS] | Location data automatically added to every still image and first frame in video from built-in GPS |
| Image Adjustment | •Automatic •Automatic maximum •Automatic minimum •Manual |
| Image Frequency | 30 Hz |
| Image Sketch | From touchscreen, on infrared image only |
| Lens Identification | Automatic |
| Minimum Focus Distance | 0.15 m (0.49 ft.), 24°, Macro mode 103 µm as option to 24° |
| Minimum Focus Distance with MSX | 0.5 m (1.64 ft.), 24° |
| Non-Radiometric IR or Visual Video | H.264 to memory card |
| Non-radiometric IR video streaming | H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi |
| Picture-in-Picture | Resizable and movable |
| Radiometric IR video recording | Real-time radiometric recording (.csq) |
| Radiometric IR video streaming | Yes, over UVC or Wi-Fi |
| Resolution | 640 × 480 pixels (VGA) |
| Spatial resolution (IFOV) | 1.31 mrad/pixel, 24° |
| Viewfinder | No |
| Visual Video Recording | H.264 to memory card |
| Color Depth | 24 |
| UltraMax | Quadruples pixel count; activated in menu and processed in FLIR Tools |
| Video Lamp | Built-in LED light |
| Viewing Angle | 80° |
| Visual Image | Yes |
| Visual Video Streaming | Yes |
| Accuracy | ±2°C (±3.6°F) or ±2% of reading |
| Area measurement information | Yes |
| Laser Distance Meter | Yes; dedicated button |
| Measurement Corrections | Yes |
| Measurement Function Alarm | Audible/visual alarms (above/below) on any selected measurement function |
| Measurement Presets | •No measurements •Center spot •Hot spot •Cold spot •User preset 1 •User preset 2 |
| Object Temperature Range |
|
| Reference Temperature | Yes |
| Thermal Sensitivity/NETD | |
| Spotmeter and Area | 3 ea. in live mode |
| Automatic hot & cold detection | Automatic maximum/minimum markers within area |
| Battery operating time | Approx. 4 hours at 25°C (77°F) ambient temperature and typical use |
| Battery size (L x W x H) | 59 × 66 × 94 mm (2.3 × 2.6 × 3.7 in.) |
| Battery type | Li-ion battery, charged in camera or on separate charger |
| Battery voltage | 3.6 V |
| Battery weight | 195 g (6.89 oz.) |
| Charging system | In camera (AC adapter or 12 V from a vehicle) or two-bay charger |
| Charging Temperature | 0°C to +45°C (+32°F to +113°F), except for the Korean market: +10°C to +45°C (+50°F to +113°F) |
| Charging Time (using two-bay charger) | 3.5 h to 90% capacity, on-screen indicator |
| External Power Operation | AC adapter 90–260 V AC (50/60 Hz) or 12 V from a vehicle (cable with standard plug, optional) |
| Power Management | Automatic shut-down and sleep mode |
| Packaging | Infrared camera with lens, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C) |
| Image File Format | Standard JPEG with measurement data included |
