SHAFTALIGN® touch

Pruftechnik

The new SHAFTALIGN® touch leverages single-laser technology to provide high-precision, high-performance alignment measurements.

Additional Info

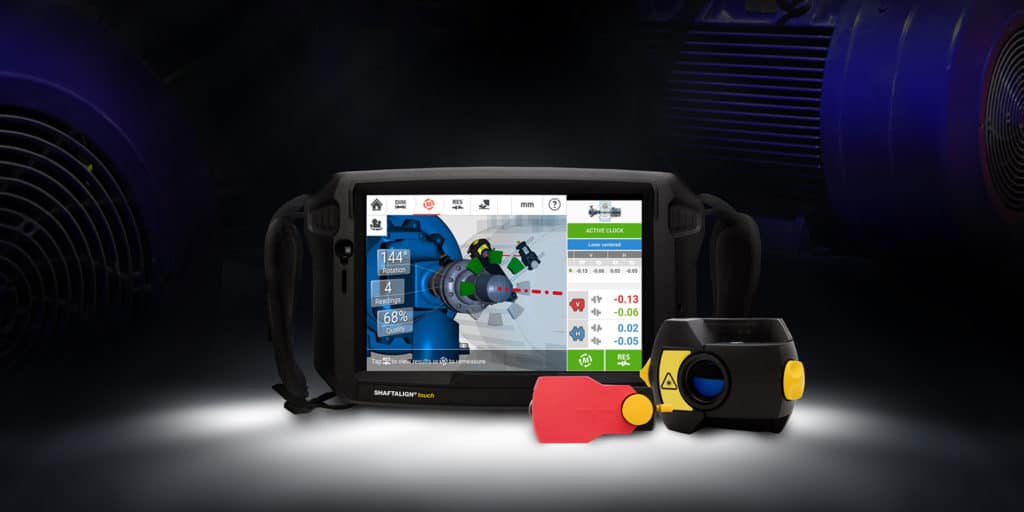

Introducing the new SHAFTALIGN® touch

The new SHAFTALIGN® touch laser alignment system provides digital, cloud, and other advancements over the widely used dial indicator and feeler gauge of past decades.

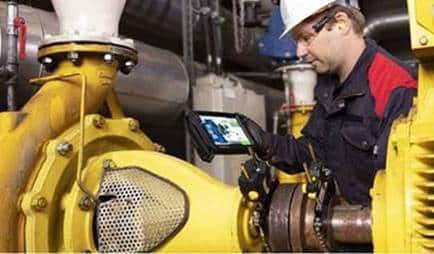

SHAFTALIGN® touch masters virtually any alignment task on standard machines driven by rotating shafts. Its laser precision results improve on those of conventional measurement equipment. It also offers simple and quick setup, intuitive handling through a computer-based and guided user interface, and an insightful visualization of results on the bright- colored 3D rugged tablet-like display.

Due to its 3D rugged sensALIGN® 3 sensor and reflector, this new laser alignment system can handle almost any standard machine alignment challenge. With its problem-solving Adaptive Alignment features, the SHAFTALIGN® touch offers an unbeatable price-performance ratio.

Key benefits at a glance

  • High performance and precise results
  • Quick setup and intuitive user interface

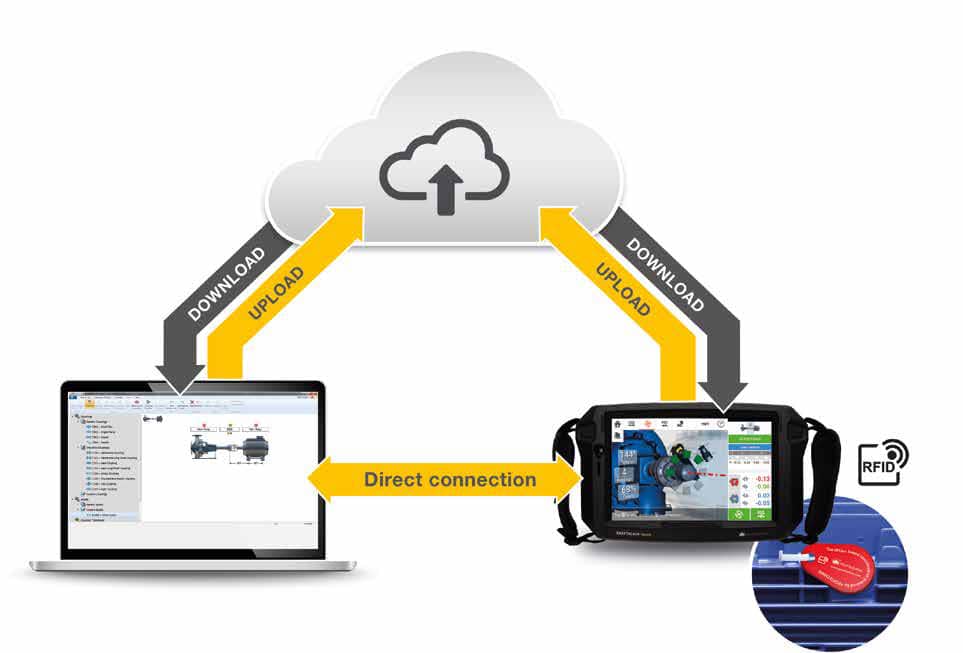

  • Share data via the cloud
  • Thermal Growth Calculator.
  • Cloud based transfer

Measure over different types of couplings SHAFTALIGN® touch provides a wide range of coupling types, making it easier for the user to receive an optimal measuring result without deviating from the specific tolerances. Choose the right coupling adapted to your onsite situation:

  • short flex coupling
  • spacer shaft
  • single plane coupling
  • uncoupled shafts
  • further various default coupling formats
