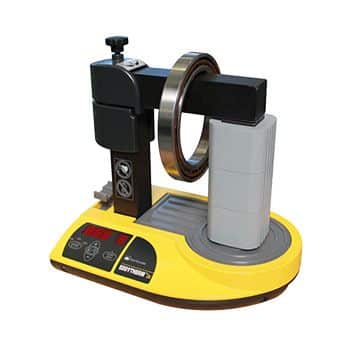

EDDYTHERM 2x

Category Eddytherm

For fast and efficient heating and automatic demagnetization:

The EDDYTHERM 2x induction heater is suitable for heating small and medium-sized bearings and other metallic, ring-shaped workpieces up to 80 kg. It uses the same induction principle as in transformers – its core and windings are used as the primary side, but the workpiece acts as a short-circuited secondary winding, which rapidly heats up due to its great electrical resistance.

EDDYTHERM 2x controls the heating by continuously monitoring the workpiece temperature and adjusting its own heating power accordingly. This ensures that the workpiece is heated evenly and the selected temperature is achieved precisely. The crossbar itself remains cool to the touch.

Additional Info

Detailed features

Robust industrial design

Equipment for workshop use
Heavy-duty construction
Suitable to use with work gloves

Environmentally friendly

Energy saving
No smoke or oil vapour

Safety

Automatic error detection
Thermal overload protection

Saves bearings

No contamination of factory prelubrication
Precision ground crossbars reduce vibration, preventing chatter marks on bearings

Demagnetization

All EDDYTHERM® heaters demagnetize workpieces automatically at the end of every heating cycle with no residual magnetism to collect debris.
Suitable for bearings up to 80 kg
Compact and flexible with movable stand
Magnetic temperature probe up to 250°C
Available options: Voltage from 200 – 575 V and frequency 50/60 Hz.
Easy operation:

- Temperature and time selection
- Temperature display in °C or °F
- Digital display of set and actual value
- Acoustic signal at the end of heating cycle
- Dust, oil and water-resistant operator panel
- Straightforward operation
- Automatic demagnetizing
Thermal overload protection

Summary of Features

Robust industrial design
Easy operation
Environmentally friendly
Safety
Saves bearings
Automatically demagnetizes
Suitable for bearings up to 80 kg
Compact and flexible with movable stand
Magnetic temperature probe up to 250°C
Available options: Voltage from 200 – 575 V and frequency 50/60 Hz
Magnetic temperature probe up to 250°C
Thermal overload protection

Specifications

Technical specifications

Voltage	110V- 575V¹⁾/ 50 – 60Hz
Power consumption	max. 4.6 kVA
Workpiece max. weight	80 kg
Workpiece bore diameter	inside > 20 mm/outside < 400 mm
Thermal overload protection	yes
Temperature control	up to 250°C
Temperature accuracy	better than 3°C
Time setting	0-60 min
Residual magnetism after heating	< 2 A/cm
Power throttling	yes
Error display	yes
Dimensions (W x D x H)	420 x 280 x 420 mm
Distance between posts	120 mm
Weight (Standard version)	38 kg
